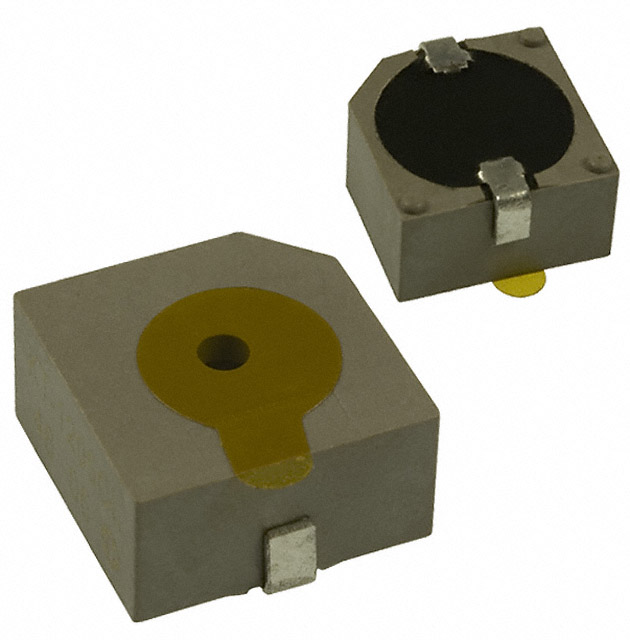

CT-1212CL-SMT-TR
ActiveCUI Devices
BUZZER MAGN 12V 12.8X12.8MM SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CT-1212CL-SMT-TR
ActiveCUI Devices
BUZZER MAGN 12V 12.8X12.8MM SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CT-1212CL-SMT-TR |
|---|---|
| Current - Supply | 30 mA |
| Driver Circuitry | Internally Driven, Indicator |
| Frequency | 2.4 kHz |
| Height - Seated (Max) [Max] [z] | 0.299 in |
| Height - Seated (Max) [Max] [z] | 7.6 mm |
| Input Type | DC |
| Mounting Type | Surface Mount |
| Operating Mode | Single Tone |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -30 ░C |
| Port Location | Top |
| Ratings | Washable |
| Size / Dimension [x] | 12.8 mm |
| Size / Dimension [x] | 0.504 " |
| Size / Dimension [y] | 12.8 mm |
| Size / Dimension [y] | 0.504 " |
| Sound Pressure Level (SPL) | 85 dB |
| Technology | Magnetic |
| Termination | Solder Pads |
| Voltage - Rated | 12 VDC |
| Voltage Range [Max] | 15 V |
| Voltage Range [Min] | 8 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.20 | |
| 10 | $ 1.79 | |||
| 25 | $ 1.65 | |||
| 50 | $ 1.55 | |||
| 100 | $ 1.46 | |||
| Digi-Reel® | 1 | $ 2.20 | ||
| 10 | $ 1.79 | |||
| 25 | $ 1.65 | |||
| 50 | $ 1.55 | |||
| 100 | $ 1.46 | |||
| Tape & Reel (TR) | 450 | $ 1.28 | ||
| 900 | $ 1.20 | |||
| 1350 | $ 1.18 | |||
Description
General part information
CT-1212 Series
Buzzers Indicator, Internally Driven Magnetic 12 V 30mA 2.4kHz 85dB @ 12V, 10cm Surface Mount Solder Pads
