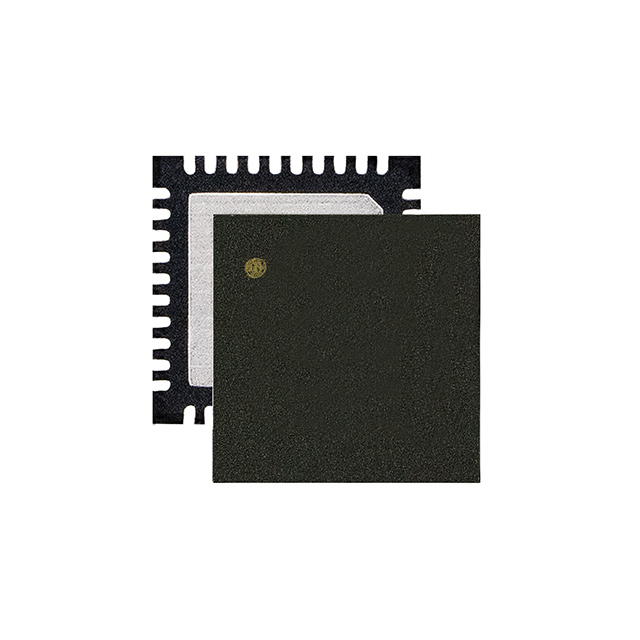

NRF52820-QDAA-R
ActiveNordic Semiconductor ASA
IC RF TXRX+MCU 802.15.4 40QFN
Deep-Dive with AI
Search across all available documentation for this part.
NRF52820-QDAA-R
ActiveNordic Semiconductor ASA
IC RF TXRX+MCU 802.15.4 40QFN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | NRF52820-QDAA-R |
|---|---|
| Current - Receiving | 4.7 mA |
| Current - Transmitting | 4.9 mA |
| Data Rate (Max) | 2 Mbps |
| Frequency | 2.4 GHz |
| GPIO | 18 |
| Memory Size | 32 kB, 256 kB |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 40-VFQFN Exposed Pad |
| Power - Output | 8 dBm |
| Protocol | Thread, Zigbee®, Bluetooth v5.3 |
| RF Family/Standard | Bluetooth, 802.15.4 |
| Sensitivity | -95 dBm |
| Serial Interfaces | UART, USB, SPI, GPIO, I2S |
| Supplier Device Package | 40-QFN (5x5) |
| Type | TxRx + MCU |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 1.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.82 | |
| 100 | $ 2.41 | |||
| 500 | $ 2.09 | |||
| 1000 | $ 1.91 | |||
| Digi-Reel® | 1 | $ 2.82 | ||
| 100 | $ 2.41 | |||
| 500 | $ 2.09 | |||
| 1000 | $ 1.91 | |||
| Tape & Reel (TR) | 4000 | $ 1.91 | ||
Description
General part information
NRF52820 Series
IC RF TxRx + MCU 802.15.4, Bluetooth Bluetooth v5.3, Thread, Zigbee® 2.4GHz 40-VFQFN Exposed Pad
