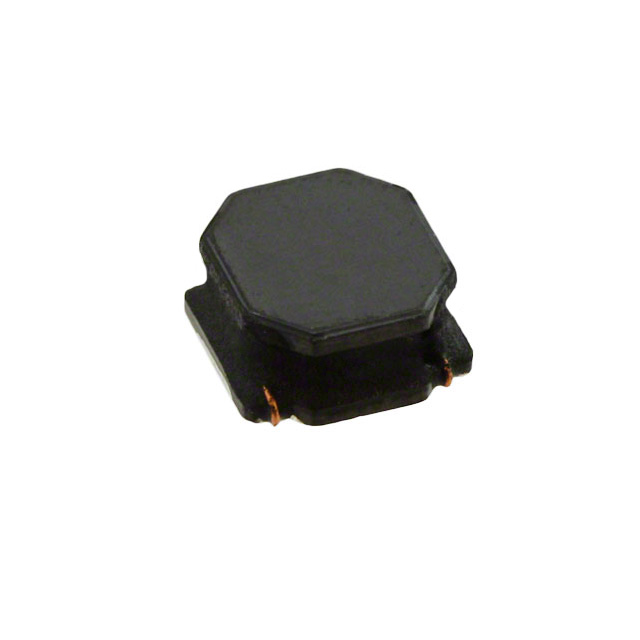

LQH44NN4R7M03L

Active

Murata Power Solutions Inc.

FIXED IND 4.7UH 1.95A 52MOHM SMD

Search across all available documentation for this part.

Active

Murata Power Solutions Inc.

FIXED IND 4.7UH 1.95A 52MOHM SMD

Technical Specifications

Parameters and characteristics for this part

Part	Mounting Type	Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Current Rating (Amps)	Inductance	Height - Seated (Max) [Max]	Height - Seated (Max)	Frequency - Self Resonant	Tolerance	Supplier Device Package	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Material - Core	DC Resistance (DCR) [Max]	Shielding	Package / Case
Murata Power Solutions Inc. LQH44NN221K03L	Surface Mount	Drum Core Wirewound	0.157 in	4 mm	4 mm	0.157 "	0.21 A	220 µH	0.177 "	4.5 mm	3.9 MHz	10 %	4040 Metric	1515	125 °C	-40 °C	Ferrite	1.56 Ohm	Unshielded	Nonstandard
Murata Power Solutions Inc. LQH44NN220K03L	Surface Mount	Drum Core Wirewound	0.157 in	4 mm	4 mm	0.157 "	950 mA	22 µH	0.177 "	4.5 mm	14 MHz	10 %	4040 Metric	1515	125 °C	-40 °C	Ferrite	221 mOhm	Unshielded	Nonstandard
Murata Power Solutions Inc. LQH44NN4R7M03L	Surface Mount	Drum Core Wirewound	0.157 in	4 mm	4 mm	0.157 "	1.95 A	4.7 ÁH	0.177 "	4.5 mm	23.4 MHz	20 %	4040 Metric	1515	125 °C	-40 °C	Ferrite		Unshielded	Nonstandard
Murata Power Solutions Inc. LQH44NN1R0M03L	Surface Mount	Drum Core Wirewound	0.157 in	4 mm	4 mm	0.157 "	3.3 A	1 µH	0.177 "	4.5 mm	90 MHz	20 %	4040 Metric	1515	125 °C	-40 °C	Ferrite	15.6 mOhm	Unshielded	Nonstandard
Murata Power Solutions Inc. LQH44NN100K03L	Surface Mount	Drum Core Wirewound	0.157 in	4 mm	4 mm	0.157 "	1.3 A	10 µH	0.177 "	4.5 mm	23.5 MHz	10 %	4040 Metric	1515	85 °C	-40 °C	Ferrite	87.1 mOhm	Unshielded	Nonstandard

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

4.7 µH Unshielded Drum Core, Wirewound Inductor 1.95 A 52mOhm Max Nonstandard
