346-032-521-212
ActiveEDAC Inc.

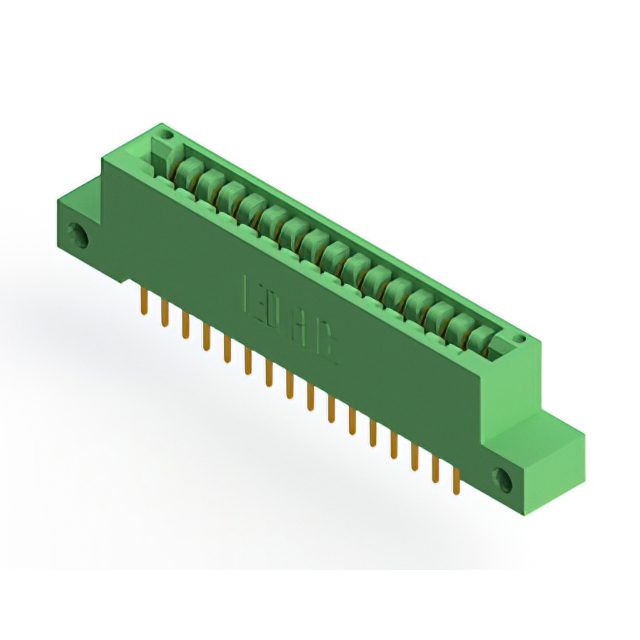

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 32 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
Deep-Dive with AI
Search across all available documentation for this part.
346-032-521-212
ActiveEDAC Inc.
CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 32 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 346-032-521-212 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Unthreaded, Flush Mount, Side Opening |
| Flange Feature [diameter] | 3.25 mm |
| Flange Feature [diameter] | 0.128 " |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions/Bay/Row [custom] | 16 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.125 in |
| Pitch [x] | 3.18 mm |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
346-032 Series
...
| Part | Card Type | Material - Insulation | Number of Rows | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Pitch [x] | Pitch [x] | Mounting Type | Gender | Contact Finish | Contact Type | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish Thickness | Contact Finish Thickness | Number of Positions/Bay/Row [custom] | Color | Termination Rows | Features | Termination | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Material | Read Out | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Non Specified - Dual Edge | Polyester Thermoplastic | 2 | 0.116 in | Floating Bobbin Flush Mount | 2.95 mm | 0.125 in | 3.18 mm | Board Edge Straddle Mount | Female | Gold | Cantilever | -40 °C | 105 ░C | 10 Áin | 0.25 Ám | 16 | Green | 2 | Card Extender | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Dual | ||
EDAC Inc. | Non Specified - Dual Edge | Polyester Thermoplastic | 2 | 0.128 " | Flush Mount Side Opening Unthreaded | 3.25 mm | 0.125 in | 3.18 mm | Through Hole | Female | Gold | Cantilever | -40 °C | 105 ░C | 10 Áin | 0.25 Ám | 16 | Green | 2 | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Dual | |||
EDAC Inc. | Non Specified - Single Edge | Polyester Thermoplastic | 1 | 0.128 " | Flush Mount Side Opening Unthreaded | 3.25 mm | 0.125 in | 3.18 mm | Through Hole Right Angle | Female | Gold | Cantilever | -40 °C | 105 ░C | 10 Áin | 0.25 Ám | 32 | Green | 1 | Solder Wire Wrap | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Single | |||
EDAC Inc. | Non Specified - Single Edge | Polyester Thermoplastic | 1 | 0.116 in | Floating Bobbin Flush Mount | 2.95 mm | 0.125 in | 3.18 mm | Through Hole | Female | Gold | Cantilever | -40 °C | 105 ░C | 10 Áin | 0.25 Ám | 32 | Green | 1 | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Single | |||
EDAC Inc. | Non Specified - Dual Edge | Polyester Thermoplastic | 2 | 4-40 Flush Mount Threaded Insert Top Opening | 0.125 in | 3.18 mm | Through Hole Right Angle | Female | Gold | Cantilever | -40 °C | 105 ░C | 10 Áin | 0.25 Ám | 16 | Green | 2 | Solder Wire Wrap | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Dual | |||||
EDAC Inc. | Non Specified - Dual Edge | Polyester Thermoplastic | 2 | 0.125 in | 3.18 mm | Through Hole | Female | Gold | Cantilever | -40 °C | 105 ░C | 10 Áin | 0.25 Ám | 16 | Green | 2 | Wire Wrap | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Dual | 3.25 mm | 0.128 in | ||||
EDAC Inc. | Non Specified - Single Edge | Polyester Thermoplastic | 1 | 4-40 Threaded Insert Top Mount Opening | 0.125 in | 3.18 mm | Through Hole | Female | Gold | Cantilever | -40 °C | 105 ░C | 10 Áin | 0.25 Ám | 32 | Green | 1 | Card Guides | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Single | ||||
EDAC Inc. | Non Specified - Dual Edge | Polyester Thermoplastic | 2 | 0.156 in | Top Mount Opening Unthreaded | 3.96 mm | 0.125 in | 3.18 mm | Board Edge Straddle Mount | Female | Gold | Cantilever | -40 °C | 105 ░C | 10 Áin | 0.25 Ám | 16 | Green | 2 | Card Extender | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Dual | ||
EDAC Inc. | Non Specified - Dual Edge | Polyester Thermoplastic | 2 | Flush Mount M3 Threaded Insert Top Opening | 0.125 in | 3.18 mm | Through Hole | Female | Gold | Cantilever | -40 °C | 105 ░C | 10 Áin | 0.25 Ám | 16 | Green | 2 | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Dual | |||||
EDAC Inc. | Non Specified - Dual Edge | Polyester Thermoplastic | 2 | 4-40 Threaded Insert Top Mount Opening | 0.125 in | 3.18 mm | Board Edge Straddle Mount | Female | Gold | Cantilever | -40 °C | 105 ░C | 10 Áin | 0.25 Ám | 16 | Green | 2 | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Dual |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
346-032 Series
32 Position Female Connector Non Specified - Dual Edge Gold 0.125" (3.18mm) Green
