NAR141SH-F

Obsolete

Stanley Electric Co

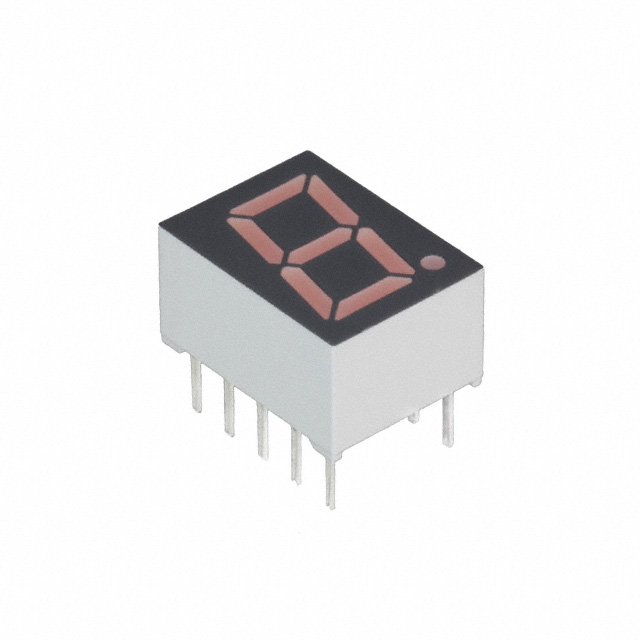

DISPLAY 7-SEG 0.4" SGL RED 10DIP

Deep-Dive with AI

Search across all available documentation for this part.

NAR141SH-F

Obsolete

Stanley Electric Co

DISPLAY 7-SEG 0.4" SGL RED 10DIP

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	NAR141SH-F

Color	Red
Common Pin	Common Anode
Current - Test	5 mA
Digit/Alpha Size	10.16 mm
Digit/Alpha Size [custom]	0.4 in
Display Type	7-Segment
Number of Characters [custom]	1
Power Dissipation (Max) [Max]	37 mW
Size / Dimension [x]	13 mm
Size / Dimension [x]	0.512 in
Size / Dimension [y]	9.6 mm
Size / Dimension [y]	0.378 in
Size / Dimension [z]	0.276 in
Size / Dimension [z]	7 mm
Voltage - Forward (Vf) (Typ)	1.9 V

NAR141 Series

Part	Power Dissipation (Max) [Max]	Color	Voltage - Forward (Vf) (Typ)	Wavelength - Peak	Millicandela Rating	Display Type	Digit/Alpha Size	Digit/Alpha Size [custom]	Number of Characters [custom]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Current - Test	Common Pin
Stanley Electric Co NAR141SB	40 mW	Red	1.7 V	660 nm	3.2 mcd	7-Segment	10.16 mm	0.4 in	1	13 mm	0.276 in	9.6 mm	0.378 in	7 mm	0.512 in	10 mA	Common Anode
Stanley Electric Co NAR141SH-F	37 mW	Red	1.9 V			7-Segment	10.16 mm	0.4 in	1	13 mm	0.276 in	9.6 mm	0.378 in	7 mm	0.512 in	5 mA	Common Anode

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

NAR141 Series

Display Modules - LED Character and Numeric Red 7-Segment 1 Character Common Anode 1.9V 5mA 0.512" H x 0.378" W x 0.276" D (13.00mm x 9.60mm x 7.00mm) 10-DIP (0.300", 7.62mm)
