Q-030110003001M

Active

Amphenol Custom Cable

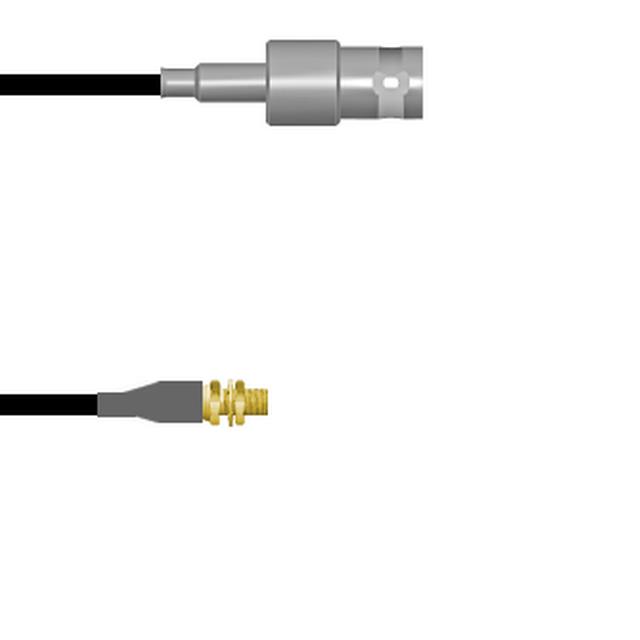

CBL ASSY BNC-MCX JACK-JACK 3.3'

Deep-Dive with AI

Search across all available documentation for this part.

Q-030110003001M

Active

Amphenol Custom Cable

CBL ASSY BNC-MCX JACK-JACK 3.3'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-030110003001M

1st Connector	BNC Jack
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Female
2nd Connector	MCX Jack
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Type	RG-174
Color	Black
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	1 m
Length	3.3 ft
Length	39.4 in
Overall Impedance	50 Ohms
Style	BNC to MCX

Q-030110 Series

Part	1st Contact Gender	Overall Impedance	Color	2nd Contact Gender	Frequency - Max [Max]	Features	Length	Length	Style	1st Connector Mounting Type	2nd Connector	Cable Type	2nd Connector Mounting Type	1st Connector	2nd Connector Mounting Feature	Length [x]	Length [x]	Length
Amphenol Custom Cable Q-030110003.75M	Female	50 Ohms	Black	Female	4 GHz	Shielded	29.53 "	750 mm	BNC to MCX	Free Hanging (In-Line)	MCX Jack	RG-174	Panel Mount	BNC Jack	Bulkhead - Front Side Nut
Amphenol Custom Cable Q-030110005.25M	Female	50 Ohms	Copper	Female	4 GHz	Shielded			BNC to MCX	Free Hanging (In-Line)	MCX Jack	RG-316	Panel Mount	BNC Jack	Bulkhead - Front Side Nut	9.843 "	250 mm
Amphenol Custom Cable Q-030110005.75M	Female	50 Ohms	Copper	Female	4 GHz	Shielded	29.53 "	750 mm	BNC to MCX	Free Hanging (In-Line)	MCX Jack	RG-316	Panel Mount	BNC Jack	Bulkhead - Front Side Nut
Amphenol Custom Cable Q-0301100051.5M	Female	50 Ohms	Copper	Female	4 GHz	Shielded	59.1 in	1.5 m	BNC to MCX	Free Hanging (In-Line)	MCX Jack	RG-316	Panel Mount	BNC Jack	Bulkhead - Front Side Nut			4.9 ft
Amphenol Custom Cable Q-030110005001M	Female	50 Ohms	Copper	Female	4 GHz	Shielded	39.4 in	1 m	BNC to MCX	Free Hanging (In-Line)	MCX Jack	RG-316	Panel Mount	BNC Jack	Bulkhead - Front Side Nut			3.3 ft
Amphenol Custom Cable Q-030110003006i	Female	50 Ohms	Black	Female	4 GHz	Shielded	6 in	152.4 mm	BNC to MCX	Free Hanging (In-Line)	MCX Jack	RG-174	Panel Mount	BNC Jack	Bulkhead - Front Side Nut
Amphenol Custom Cable Q-030110005006i	Female	50 Ohms	Copper	Female	4 GHz	Shielded	6 in	152.4 mm	BNC to MCX	Free Hanging (In-Line)	MCX Jack	RG-316	Panel Mount	BNC Jack	Bulkhead - Front Side Nut
Amphenol Custom Cable Q-030110003072i	Female	50 Ohms	Black	Female	4 GHz	Shielded	72 in	1.8 m	BNC to MCX	Free Hanging (In-Line)	MCX Jack	RG-174	Panel Mount	BNC Jack	Bulkhead - Front Side Nut			6 ft
Amphenol Custom Cable Q-030110003001M	Female	50 Ohms	Black	Female	4 GHz	Shielded	39.4 in	1 m	BNC to MCX	Free Hanging (In-Line)	MCX Jack	RG-174	Panel Mount	BNC Jack	Bulkhead - Front Side Nut			3.3 ft
Amphenol Custom Cable Q-030110003060i	Female	50 Ohms	Black	Female	4 GHz	Shielded	5 '	1.5 m	BNC to MCX	Free Hanging (In-Line)	MCX Jack	RG-174	Panel Mount	BNC Jack	Bulkhead - Front Side Nut			5 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 69.26
		25	$ 67.92
		50	$ 66.57
		100	$ 65.22
		250	$ 63.88

Description

General part information

Q-030110 Series

Cable Assembly Coaxial BNC to MCX RG-174 39.4" (1.0m) 3.3'

Documents

Technical documentation and resources

No documents available
