H3CWH-2018G
ActiveAssmann WSW Components
IDC CBL - HHKC20H/AE20G/HHPL20H
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
H3CWH-2018G
ActiveAssmann WSW Components
IDC CBL - HHKC20H/AE20G/HHPL20H
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | H3CWH-2018G |
|---|---|
| Cable Termination | IDC |
| Connector Type | Socket to Plug |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Features | Polarizing Key (Socket), Polarizing Key (Plug), Flange |
| Length [x] | 457.2 mm |
| Length [x] | 1.5 ft |
| Number of Positions | 20 |
| Number of Rows | 2 |
| Pitch - Cable | 0.05 " |
| Pitch - Cable | 1.27 mm |
| Pitch - Connector | 0.1 in |
| Pitch - Connector | 2.54 mm |
| Shielding | Unshielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 5.10 | |
| 10 | $ 4.63 | |||
| 25 | $ 4.39 | |||
| 50 | $ 4.29 | |||
| 100 | $ 4.08 | |||
| 250 | $ 3.57 | |||
| 500 | $ 3.47 | |||
| 1000 | $ 2.96 | |||
| 2500 | $ 2.75 | |||
Description
General part information
H3CWH-20 Series

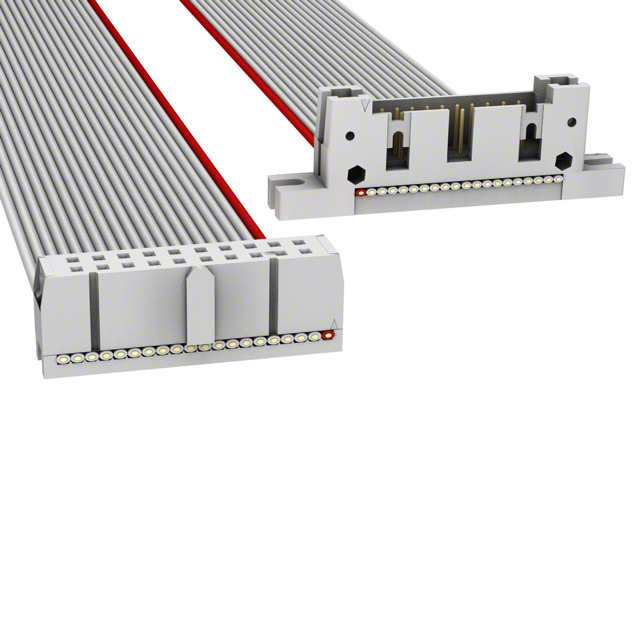

20 Position Cable Assembly Rectangular Socket to Plug 1.50' (457.20mm)
