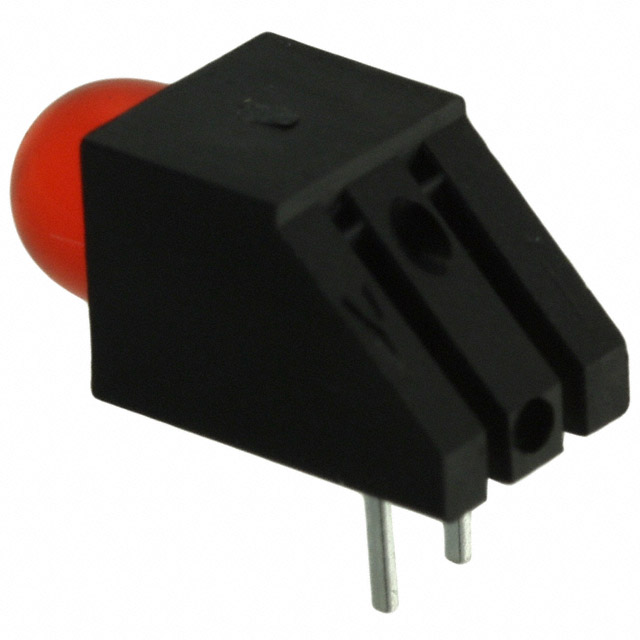

WP1503CB/SRD

Obsolete

Kingbright

LED CBI 5MM RED RA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

WP1503CB/SRD

Obsolete

Kingbright

LED CBI 5MM RED RA

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	WP1503CB/SRD

Color	Red
Configuration	Single
Lens Size	T-1 3/4
Lens Size	5 mm
Lens Style	Round with Domed Top
Lens Type	Tinted, Diffused
Millicandela Rating	1000 mcd
Mounting Type	Through Hole, Right Angle
Viewing Angle	60 °
Voltage Rating	1.85 V
Wavelength - Peak	660 nm

WP1503 Series

Part	Millicandela Rating	Wavelength - Peak	Mounting Type	Viewing Angle	Current - Test	Lens Size	Lens Size	Height (Max) [Max] [z]	Package / Case	Voltage - Forward (Vf) (Typ)	Configuration	Size / Dimension [diameter]	Lens Style	Color	Lens Transparency	Lens Color	Wavelength - Dominant	Supplier Device Package	Lens Type	Voltage Rating	Current
Kingbright WP1503EC	50 mcd	627 nm	Through Hole	30 °	20 mA	T-1 3/4	5 mm	8.6 mm	Radial	2 V	Standard	5 mm	Round with Domed Top	Red	Clear	Colorless	617 nm	T-1 3/4
Kingbright WP1503SGT	200 mcd	565 nm	Through Hole	30 °	20 mA	T-1 3/4	5 mm	8.6 mm	Radial	2.2 V	Standard	5 mm	Round with Domed Top	Green	Clear	Green	568 nm	T-1 3/4
Kingbright WP1503GC	100 mcd	565 nm	Through Hole	30 °	20 mA	T-1 3/4	5 mm	8.6 mm	Radial	2.2 V	Standard	5 mm	Round with Domed Top	Green	Clear	Colorless	568 nm	T-1 3/4
Kingbright WP1503CB/ID	50 mcd	627 nm	Through Hole Right Angle	60 °		T-1 3/4	5 mm				Single		Round with Domed Top	Red					Diffused Tinted	2 V	30 mA
Kingbright WP1503SRD	260 mcd	655 nm	Through Hole	60 °	20 mA	T-1 3/4	5 mm	8.6 mm	Radial	1.85 V	Standard	5 mm	Round with Domed Top	Red	Diffused	Red	640 nm	T-1 3/4
Kingbright WP1503GT	100 mcd	565 nm	Through Hole	30 °	20 mA	T-1 3/4	5 mm	8.6 mm	Radial	2.2 V	Standard	5 mm	Round with Domed Top	Green	Clear	Green	568 nm	T-1 3/4
Kingbright WP1503EB/2GD	50 mcd	565 nm	Through Hole Right Angle	60 °		T-1 3/4	5 mm				2 High		Round with Domed Top	Green (x 2)					Diffused Tinted
Kingbright WP1503SRC/D	800 mcd	655 nm	Through Hole	30 °	20 mA	T-1 3/4	5 mm	8.6 mm	Radial	1.85 V	Standard	5 mm	Round with Domed Top	Red	Clear	Colorless	640 nm	T-1 3/4
Kingbright WP1503CB/SRD	1000 mcd	660 nm	Through Hole Right Angle	60 °		T-1 3/4	5 mm				Single		Round with Domed Top	Red					Diffused Tinted	1.85 V
Kingbright WP1503EB/2ID	50 mcd	627 nm	Through Hole Right Angle	60 °		T-1 3/4	5 mm				2 High		Round with Domed Top	Red					Diffused Tinted	2 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

WP1503 Series

LED Circuit Board Indicator LED Circuit Board Indicator Single Red Diffused, Tinted 1.85V 20mA Round with Domed Top 5mm, T-1 3/4 Through Hole, Right Angle
