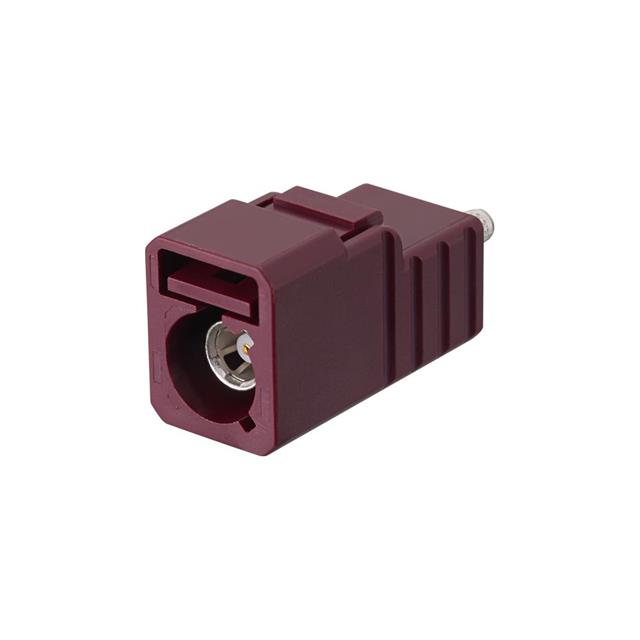

FK.G3.SMBFST.D.AP

Obsolete

TAOGLAS

RF / COAXIAL CONNECTOR, FAKRA COAXIAL, STRAIGHT JACK, CRIMP, 50 OHM, RG174, RG316

Search across all available documentation for this part.

Obsolete

TAOGLAS

RF / COAXIAL CONNECTOR, FAKRA COAXIAL, STRAIGHT JACK, CRIMP, 50 OHM, RG174, RG316

Technical Specifications

Parameters and characteristics for this part

Specification	FK.G3.SMBFST.D.AP

Body Finish	Nickel
Body Material	Brass
Cable Group	RG-174, 188, 316
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	SMB, Fakra
Connector Type	Plug, Female Socket
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Features	Code D
Frequency - Max [Max]	3 GHz
Housing Color	Violet
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Shield Termination	Crimp

Part	Center Contact Material	Body Material	Center Contact Plating	Frequency - Max [Max]	Number of Ports	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Contact Termination	Impedance	Cable Group	Fastening Type	Dielectric Material	Connector Type	Connector Style	Features	Shield Termination	Housing Color	Body Finish
TAOGLAS FK.G3.SMBFST.D.AP	Brass	Brass	Gold	3 GHz	1	85 °C	-40 °C	Free Hanging (In-Line)	Crimp	50 Ohms	188 316 RG-174	Snap-On	Polytetrafluoroethylene (PTFE)	Female Socket Plug	Fakra SMB	Code D	Crimp	Violet	Nickel

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Newark	Each	1	$ 3.12

General part information

SMB, Fakra Connector Plug, Female Socket 50 Ohms Free Hanging (In-Line) Crimp
