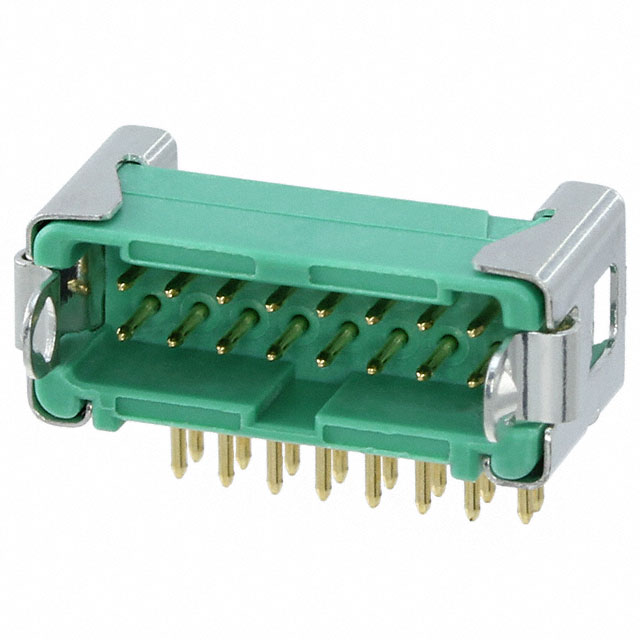

G125-MH11605L3P

Active

Harwin Inc.

CONNECTOR, HEADER, 16POS, 2ROW, 1.25MM ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsG125-0010005 Datasheet +4

G125-MH11605L3P

Active

Harwin Inc.

CONNECTOR, HEADER, 16POS, 2ROW, 1.25MM ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsG125-0010005 Datasheet +4

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	G125-MH11605L3P

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	0.203 Ám
Contact Finish Thickness - Mating	8 Áin
Contact Length - Post	0.13 in
Contact Length - Post	3.3 mm
Contact Material	Phosphor Bronze
Contact Shape	Circular
Contact Type	Male Pin
Current Rating (Amps)	2 A
Fastening Type	Latch Lock
Features	Solder Retention
Insulation Color	Green
Insulation Height	5.56 mm
Insulation Height [z]	0.219 in
Insulation Material	Polyamide (PA4T), Nylon 4T, Halogen Free, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	16
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-65 ░C
Pitch - Mating	1.25 mm
Pitch - Mating	0.049 in
Row Spacing - Mating	0.049 in
Row Spacing - Mating	1.25 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	250 VDC

G125-MH1 Series

Part	Mounting Type	Number of Rows	Fastening Type	Shrouding	Insulation Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Style	Number of Positions	Contact Shape	Material Flammability Rating	Voltage Rating	Number of Positions Loaded	Insulation Height [z]	Insulation Height	Insulation Color	Connector Type	Row Spacing - Mating	Row Spacing - Mating	Pitch - Mating	Pitch - Mating	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Contact Type	Termination	Contact Finish - Mating	Contact Length - Post	Contact Length - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish - Post	Insulation Height	Features	Number of Positions	Contact Length - Post [x]
Harwin Inc. G125-MH15005L5P	Through Hole Right Angle	2	Latch Holder	Shrouded - 4 Wall	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	0.203 Ám	8 Áin	Board to Board Cable	50	Circular	UL94 V-0	250 VDC	All	0.219 in	5.56 mm	Green	Header	0.049 in	1.25 mm	1.25 mm	0.049 in	2 A	-65 ░C	150 °C	Phosphor Bronze	Male Pin	Solder	Gold	0.13 in	3.3 mm
Harwin Inc. G125-MH13405L1R	Through Hole Right Angle	2	Latch Holder	Shrouded - 4 Wall	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	0.203 Ám	8 Áin	Board to Board Cable	34	Circular	UL94 V-0	600 VAC	All		5.55 mm	Green	Header	0.049 in	1.25 mm	1.25 mm	0.049 in	2 A	-65 ░C	150 °C	Phosphor Bronze	Male Pin	Solder	Gold	0.13 in	3.3 mm	8 µin	0.203 µm	Gold	0.218 in
Harwin Inc. G125-MH11005L1R	Through Hole Right Angle	2	Latch Holder	Shrouded - 4 Wall	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	0.203 Ám	8 Áin	Board to Board Cable	10	Circular	UL94 V-0	600 VAC	All		5.55 mm	Green	Header	0.049 in	1.25 mm	1.25 mm	0.049 in	2 A	-65 ░C	150 °C	Phosphor Bronze	Male Pin	Solder	Gold	0.13 in	3.3 mm	8 µin	0.203 µm	Gold	0.218 in
Harwin Inc. G125-MH11605L3P	Through Hole Right Angle	2	Latch Lock	Shrouded - 4 Wall	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	0.203 Ám	8 Áin	Board to Board Cable		Circular	UL94 V-0	250 VDC	All	0.219 in	5.56 mm	Green	Header	0.049 in	1.25 mm	1.25 mm	0.049 in	2 A	-65 ░C	150 °C	Phosphor Bronze	Male Pin	Solder	Gold	0.13 in	3.3 mm					Solder Retention	16
Harwin Inc. G125-MH12005L5R	Through Hole Right Angle	2	Latch Holder	Shrouded - 4 Wall	Polyamide (PA4T) Nylon 4T			Board to Board Cable	20	Circular	UL94 V-0		All		5.55 mm	Green	Header	0.049 in	1.25 mm	1.25 mm	0.049 in	2 A	-65 ░C	150 °C	Phosphor Bronze	Male Pin	Solder	Gold		3.2 mm			Gold	0.218 in			0.126 in
Harwin Inc. G125-MH11205L3R	Through Hole Right Angle	2	Latch Holder	Shrouded - 4 Wall	Polyamide (PA4T) Nylon 4T			Board to Board Cable	12	Circular	UL94 V-0		All		5.55 mm	Green	Header	0.049 in	1.25 mm	1.25 mm	0.049 in	2 A	-65 ░C	150 °C	Phosphor Bronze	Male Pin	Solder	Gold		3.2 mm			Gold	0.218 in			0.126 in
Harwin Inc. G125-MH11005L3P	Through Hole Right Angle	2	Latch Lock	Shrouded - 4 Wall	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	0.203 Ám	8 Áin	Board to Board Cable	10	Circular	UL94 V-0	250 VDC	All	0.219 in	5.56 mm	Green	Header	0.049 in	1.25 mm	1.25 mm	0.049 in	2 A	-65 ░C	150 °C	Phosphor Bronze	Male Pin	Solder	Gold	0.13 in	3.3 mm					Solder Retention
Harwin Inc. G125-MH11005L1P	Through Hole Right Angle	2	Latch Lock	Shrouded - 4 Wall	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	0.203 Ám	8 Áin	Board to Board Cable	10	Circular	UL94 V-0	250 VDC	All	0.219 in	5.56 mm	Green	Header	0.049 in	1.25 mm	1.25 mm	0.049 in	2 A	-65 ░C	150 °C	Phosphor Bronze	Male Pin	Solder	Gold	0.13 in	3.3 mm
Harwin Inc. G125-MH12605L1R	Through Hole Right Angle	2	Latch Holder	Shrouded - 4 Wall	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	0.203 Ám	8 Áin	Board to Board Cable	26	Circular	UL94 V-0	600 VAC	All		5.55 mm	Green	Header	0.049 in	1.25 mm	1.25 mm	0.049 in	2 A	-55 °C	125 °C	Phosphor Bronze	Male Pin	Solder	Gold	0.13 in	3.3 mm	8 µin	0.203 µm	Gold	0.218 in
Harwin Inc. G125-MH13405L5P	Through Hole Right Angle	2	Latch Holder	Shrouded - 4 Wall	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	0.203 Ám	8 Áin	Board to Board Cable	34	Circular	UL94 V-0	250 VDC	All	0.219 in	5.56 mm	Green	Header	0.049 in	1.25 mm	1.25 mm	0.049 in	2 A	-65 ░C	150 °C	Phosphor Bronze	Male Pin	Solder	Gold	0.13 in	3.3 mm
