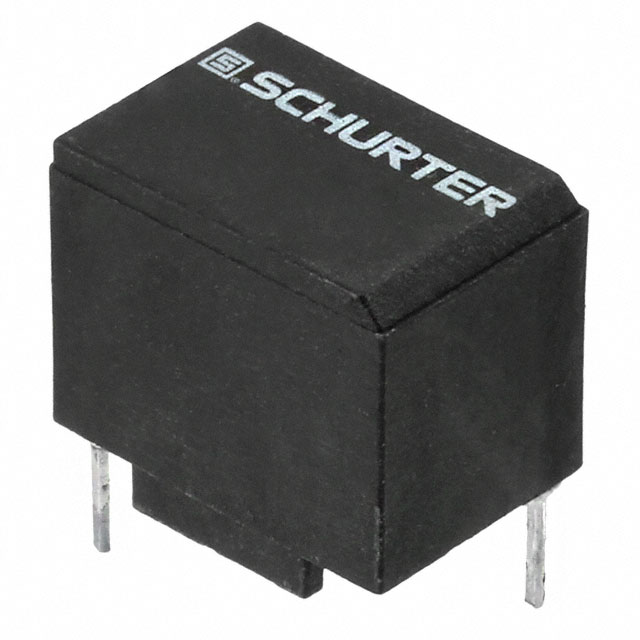

DLH-14-0003

Active

SCHURTER Inc.

FIXED IND 50UH 2A 50 MOHM TH

Search across all available documentation for this part.

Active

SCHURTER Inc.

FIXED IND 50UH 2A 50 MOHM TH

Technical Specifications

Parameters and characteristics for this part

Specification	DLH-14-0003

Current Rating (Amps)	2 A
DC Resistance (DCR)	50 mOhm
Inductance	50 µH
Mounting Type	Through Hole
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	Radial, Horizontal - Corner Terminals
Shielding	Shielded
Size / Dimension [x]	0.591 in
Size / Dimension [x]	15 mm
Size / Dimension [y]	10.5 mm
Size / Dimension [y]	0.413 in
Tolerance	15 %

Part	DC Resistance (DCR)	Package / Case	Current Rating (Amps)	Mounting Type	Shielding	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Inductance	Tolerance
SCHURTER Inc. DLH-14-0003	50 mOhm	Radial Horizontal - Corner Terminals	2 A	Through Hole	Shielded	125 °C	-40 °C	0.591 in	10.5 mm	0.413 in	15 mm	50 µH	15 %

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

50 µH Shielded Inductor 2 A 50mOhm Radial, Horizontal - Corner Terminals
