RFB-1130-1

Active

RF Industries

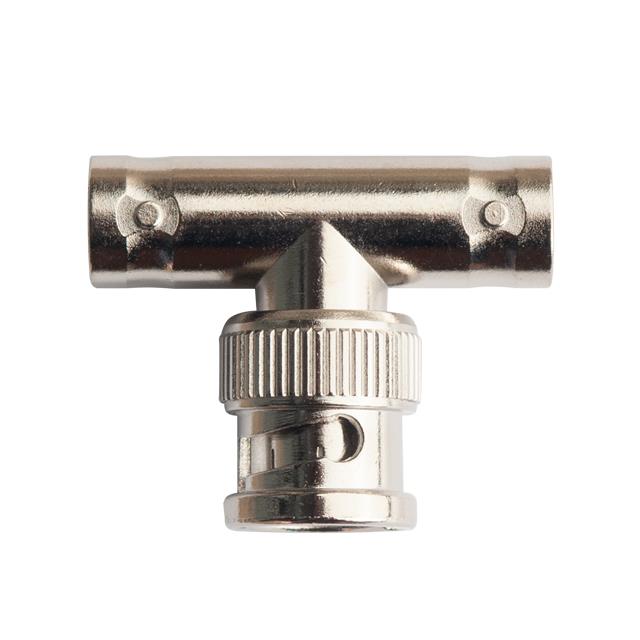

T SHAPE; BNC; 2 FEMALE-1 MALE

Search across all available documentation for this part.

Active

RF Industries

T SHAPE; BNC; 2 FEMALE-1 MALE

Technical Specifications

Parameters and characteristics for this part

Specification	RFB-1130-1

Adapter Series	BNC to BNC, Dual
Adapter Type	Plug to Jack
Body Finish	Nickel
Body Material	Zinc Die Cast
Center Contact Material	Brass
Center Contact Plating	Gold
Conversion Type	Same Series
Convert From (Adapter End)	BNC Plug, Male Pin
Convert To (Adapter End)	BNC Jack, Female Socket (2)
Dielectric Material	Polyoxymethylene (POM) Acetal
Fastening Type	Bayonet Lock
Frequency - Max [Max]	4 GHz
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line)
Style	T-Shape

Part	Impedance	Center Contact Plating	Adapter Series	Body Finish	Convert To (Adapter End)	Mounting Type	Frequency - Max [Max]	Center Contact Material	Style	Conversion Type	Fastening Type	Dielectric Material	Body Material	Convert From (Adapter End)	Adapter Type
RF Industries RFB-1130-5	50 Ohms	Gold	BNC to BNC Dual	Nickel	BNC Jack Female Socket (2)	Free Hanging (In-Line)	1 GHz	Brass	U-Shape	Same Series	Bayonet Lock	Polyoxymethylene (POM) Acetal	Zinc Die Cast	BNC Plug Male Pin	Plug to Jack
RF Industries RFB-1130-1	50 Ohms	Gold	BNC to BNC Dual	Nickel	BNC Jack Female Socket (2)	Free Hanging (In-Line)	4 GHz	Brass	T-Shape	Same Series	Bayonet Lock	Polyoxymethylene (POM) Acetal	Zinc Die Cast	BNC Plug Male Pin	Plug to Jack

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector BNC Plug, Male Pin To BNC Jack, Female Socket (2) 50 Ohms
