E2242S.41.86
ActivePrysmian Group

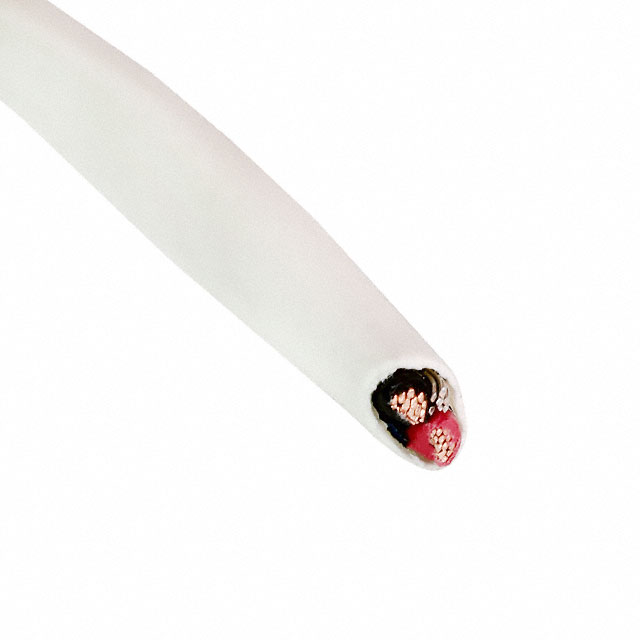

CABLE 2COND 16AWG NAT SHLD 500'
Deep-Dive with AI
Search across all available documentation for this part.
E2242S.41.86
ActivePrysmian Group
CABLE 2COND 16AWG NAT SHLD 500'
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | E2242S.41.86 |
|---|---|
| Cable Type | Multi-Conductor |
| Conductor Insulation | Poly-Vinyl Chloride (PVC) |
| Conductor Material | Copper, Bare |
| Conductor Strand [custom] | 19 |
| Conductor Strand [custom] | 0.0117 in |
| Features | Drain Wire |
| Jacket (Insulation) Diameter [diameter] | 0.179 in |
| Jacket (Insulation) Diameter [diameter] | 4.55 mm |
| Jacket (Insulation) Material | Plenum, Poly-Vinyl Chloride (PVC) |
| Jacket (Insulation) Thickness | 0.015 in |
| Jacket (Insulation) Thickness | 0.381 mm |
| Jacket Color | Natural |
| Length | 1000 ft |
| Length | 304.8 m |
| Length [x] | 30.5 m, 152.4 m |
| Length [x] | 100 ft, 500 ' |
| Number of Conductors | 2 |
| Operating Temperature [Max] | 75 ░C |
| Operating Temperature [Min] | 0 °C |
| Shield Coverage | 100 % |
| Shield Material | Flexfoil® |
| Shield Type | Foil |
| Usage | Sound, Security, Alarm |
| Voltage | 300 V |
| Wire Gauge | 16 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 66.73 | |
| 1 | $ 307.94 | |||
| 5 | $ 54.60 | |||
| 5 | $ 251.95 | |||
| 10 | $ 195.96 | |||
| 10 | $ 42.47 | |||
| Spool | 1000 | $ 0.28 | ||
| 2000 | $ 0.26 | |||
| 3000 | $ 0.26 | |||
| 5000 | $ 0.25 | |||
| 7000 | $ 0.24 | |||
| 10000 | $ 0.23 | |||
| 25000 | $ 0.22 | |||
Description
General part information
E2242S Series
2 Conductor Multi-Conductor Cable Natural 16 AWG Foil 500.0' (152.4m)
Documents
Technical documentation and resources
No documents available
