56460-502

Active

Laird Thermal Systems, Inc.

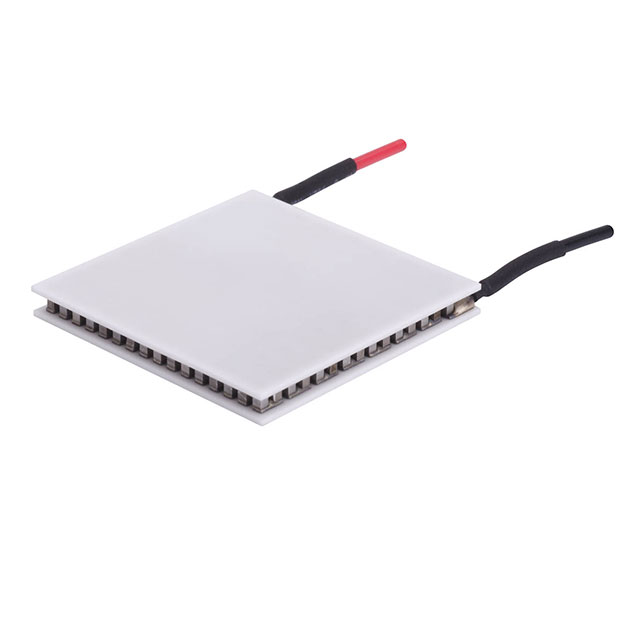

PELTIER MOD CP10,127,05,L1,W6

Search across all available documentation for this part.

Active

Laird Thermal Systems, Inc.

PELTIER MOD CP10,127,05,L1,W6

Technical Specifications

Parameters and characteristics for this part

Part	Delta Tmax @ Th	Height [z]	Features	Size / Dimension [x]	Size / Dimension [y]	Qmax @ Th	Number of Stages	Current - Max [Max]	Voltage - Max [Max]	Operating Temperature	Resistance
Laird Thermal Systems, Inc. 56460-500	67 °C	3.2 mm	Lead Wires Sealed - Epoxy	29.72 mm	29.72 mm	34.3 W	1	3.9 A	14.4 V	80 °C	3.36 Ohms
Laird Thermal Systems, Inc. 56460-502	67 °C	3.2 mm	Lead Wires Non-Sealed	29.7 mm	29.7 mm	34.3 W	1	3.9 A	14.4 V	80 °C	3.36 Ohms
Laird Thermal Systems, Inc. 56460-501	67 °C	3.2 mm	Lead Wires Non-Sealed	29.72 mm	29.72 mm	34.3 W	1	3.9 A	14.4 V	80 °C	3.36 Ohms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	20	$ 25.77
