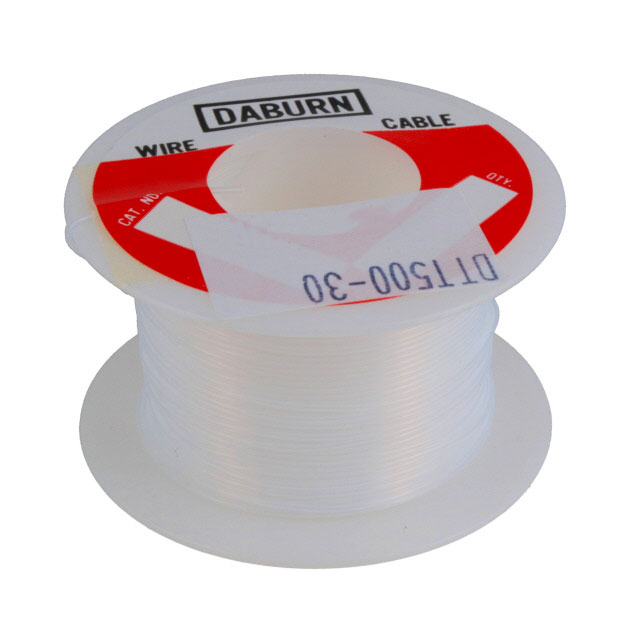

DTT500-30-100
ActiveDaburn Electronics
TUBING 0.012" ID PTFE 100' NAT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DTT500-30-100
ActiveDaburn Electronics
TUBING 0.012" ID PTFE 100' NAT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | DTT500-30-100 |
|---|---|
| Color | Natural |
| Diameter - Inside [diameter] | 0.3 mm |
| Diameter - Inside [diameter] | 0.012 in |
| Diameter - Outside [diameter] | 0.76 mm |
| Diameter - Outside [diameter] | 0.03 in |
| Environment Protection | Corrosion Resistant |
| Features | Fatique Resistant, Chemical Resistant, Stress Resistant |
| Heat Protection | Flame Retardant |
| Length | 100 ft |
| Length | 30.48 m |
| Liquid Protection | Oil Resistant |
| Material | Polytetrafluoroethylene (PTFE) |
| Material Flammability Rating | Non Flammable, UL VW-1 |
| Operating Temperature [Max] | 250 °C |
| Operating Temperature [Min] | -90 °C |
| Type | Solid Tubing |
| Type Attributes | Smooth |
| Wall Thickness | 0.23 mm |
| Wall Thickness | 0.009 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 38.28 | |
| 2 | $ 35.20 | |||
| 3 | $ 33.52 | |||
| 5 | $ 31.52 | |||
| 7 | $ 30.26 | |||
| 10 | $ 28.98 | |||
| 25 | $ 25.95 | |||
| 50 | $ 23.87 | |||
| 100 | $ 23.75 | |||
Description
General part information
DTT500 Series
Natural Polytetrafluoroethylene (PTFE) Smooth Solid Tubing 0.012" (0.30mm) 100' (30.48m)
