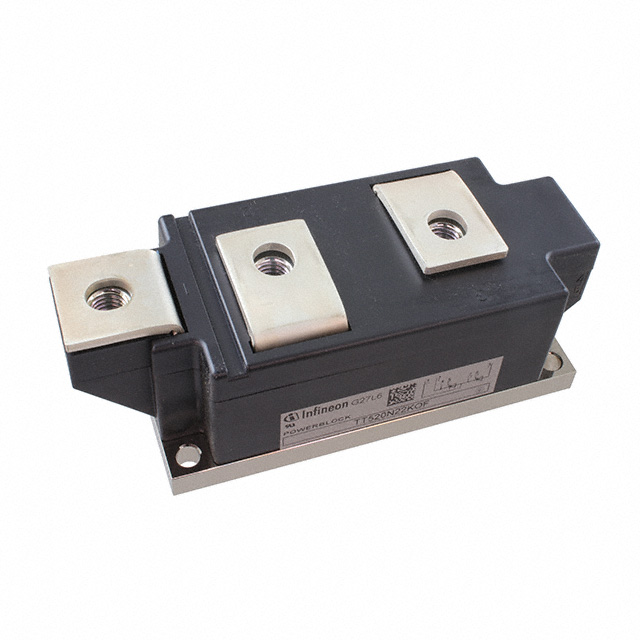

TT520N22KOFHPSA2

Active

Infineon Technologies

HIGH PERFORMANCE PHASE CONTROL THYRISTOR

Search across all available documentation for this part.

Active

Infineon Technologies

HIGH PERFORMANCE PHASE CONTROL THYRISTOR

Technical Specifications

Parameters and characteristics for this part

Specification	TT520N22KOFHPSA2

Current - Gate Trigger (Igt) (Max) [Max]	250 mA
Current - Hold (Ih) (Max) [Max]	300 mA
Current - On State (It (AV)) (Max) [Max] [custom]	520 A
Current - On State (It (RMS)) (Max)	1050 A
Mounting Type	Chassis Mount
Number of SCRs, Diodes	2 SCRs
Operating Temperature	125 ¯C
Package / Case	Module
Structure	Series Connection - All SCRs
Voltage - Gate Trigger (Vgt) (Max) [Max]	2.2 V
Voltage - Off State	2.2 kV

Part	Current - On State (It (AV)) (Max) [Max] [custom]	Number of SCRs, Diodes	Voltage - Off State	Structure	Mounting Type	Operating Temperature	Current - Non Rep. Surge 50, 60Hz (Itsm)	Voltage - Gate Trigger (Vgt) (Max) [Max]	Package / Case	Current - Gate Trigger (Igt) (Max) [Max]	Current - Hold (Ih) (Max) [Max]	Current - On State (It (RMS)) (Max)
Infineon Technologies TT520N22KOFXPSA1	520 A	2 SCRs	2.2 kV	Series Connection - All SCRs	Chassis Mount	125 ¯C	18000 A	2.2 V	Module	250 mA	300 mA	1050 A
Infineon Technologies TT520N22KOFHPSA2	520 A	2 SCRs	2.2 kV	Series Connection - All SCRs	Chassis Mount	125 ¯C		2.2 V	Module	250 mA	300 mA	1050 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 324.76
		10	$ 304.18
Newark	Each	1	$ 412.12

General part information

SCR Module 2.2 kV 1050 A Series Connection - All SCRs Chassis Mount Module
