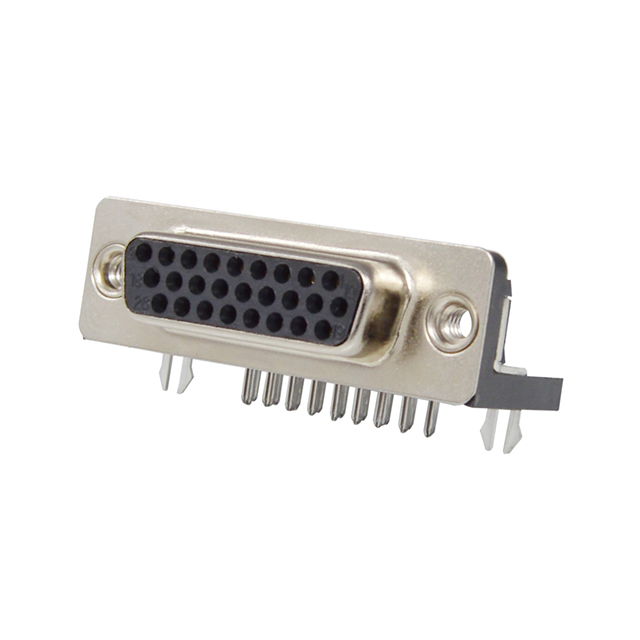

K66X-A26S-N
ActiveKycon, Inc.
CONN D-SUB HD RCPT 26P R/A SLDR
Deep-Dive with AI
Search across all available documentation for this part.
K66X-A26S-N
ActiveKycon, Inc.
CONN D-SUB HD RCPT 26P R/A SLDR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | K66X-A26S-N |
|---|---|
| Backset Spacing | 8.89 mm |
| Backset Spacing | 0.35 in |
| Color | Black |
| Connector Style | High Density, D-Sub |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Material | Phosphor Bronze |
| Contact Type | Signal |
| Current Rating (Amps) | 1.5 A |
| Dielectric Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Flange Feature | Housing/Shell (4-40) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 26 |
| Number of Rows | 3 |
| Operating Temperature [Max] | 75 ░C |
| Operating Temperature [Min] | -55 °C |
| Shell Material, Finish | Nickel Plated, Steel |
| Shell Size, Connector Layout | 2 |
| Shell Size, Connector Layout | (DA, A) High Density |
| Termination | Solder |
| Voltage Rating | 29 VAC |
K66X-A26 Series
| Part | Number of Rows | Contact Type | Termination | Shell Material, Finish | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating | Mounting Type | Dielectric Material | Contact Material | Current Rating (Amps) | Backset Spacing | Backset Spacing | Features | Contact Finish Thickness | Contact Finish Thickness | Color | Flange Feature | Material Flammability Rating | Connector Style | Number of Positions | Connector Type | Contact Finish | Shell Size, Connector Layout | Shell Size, Connector Layout | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Kycon, Inc. | 3 | Signal | Solder | Nickel Plated Steel | 75 ░C | -55 °C | 29 VAC | Through Hole Right Angle | Polybutylene Terephthalate (PBT) Glass Filled | Brass | 1.5 A | 8.89 mm | 0.35 in | Board Lock Grounding Indents | 0.76 Ám | 30 Áin | Black | Housing/Shell (4-40) | UL94 V-0 | D-Sub High Density | 26 | Male Pins Plug | Gold | 2 | (DA A) High Density | |
Kycon, Inc. | 3 | Signal | Solder | Nickel Plated Steel | 75 ░C | -55 °C | 29 VAC | Through Hole Right Angle | Polybutylene Terephthalate (PBT) Glass Filled | Phosphor Bronze | 1.5 A | 8.89 mm | 0.35 in | Black | Housing/Shell (4-40) | UL94 V-0 | D-Sub High Density | 26 | Receptacle Female Sockets | Gold | 2 | (DA A) High Density | Flash |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 6.34 | |
| 10 | $ 5.39 | |||
| 35 | $ 4.93 | |||
| 70 | $ 4.70 | |||
| 105 | $ 4.57 | |||
| 280 | $ 4.26 | |||
| 525 | $ 4.08 | |||
| 1015 | $ 3.89 | |||
| 2520 | $ 3.65 | |||
Description
General part information
K66X-A26 Series
26 Position D-Sub, High Density Receptacle, Female Sockets Connector
