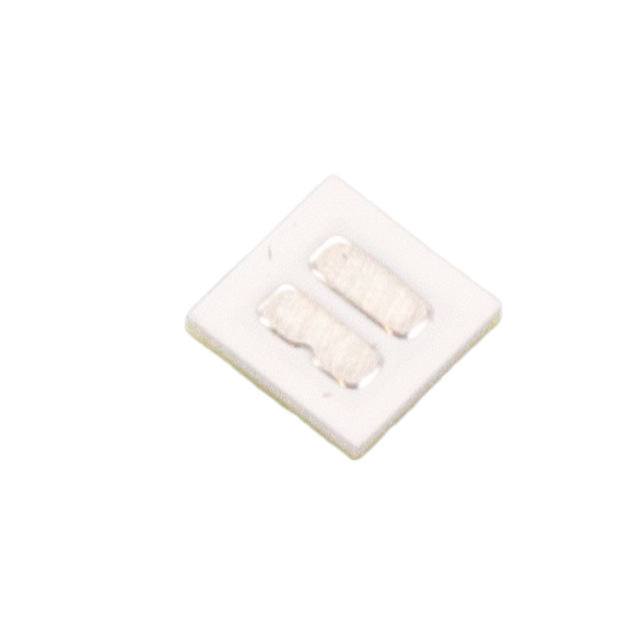

SCP8WTF1HEL1WUK34E
ActiveSamsung Semiconductor, Inc.
LED LH181B WARM WHT 2700K SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SCP8WTF1HEL1WUK34E
ActiveSamsung Semiconductor, Inc.
LED LH181B WARM WHT 2700K SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SCP8WTF1HEL1WUK34E |
|---|---|
| CCT (K) | 2700 K |
| Color | White, Warm |
| CRI (Color Rendering Index) | 80 |
| Current - Max [Max] | 1.4 A |
| Current - Test | 350 mA |
| Flux @ 85°C, Current - Test | 145 lm |
| Flux @ 85°C, Current - Test [Max] | 160 lm |
| Flux @ 85°C, Current - Test [Min] | 130 lm |
| Height - Seated (Max) [Max] | 0.019 in |
| Height - Seated (Max) [Max] | 0.48 mm |
| Lumens/Watt @ Current - Test | 143 lm/W |
| Mounting Type | Surface Mount |
| Package / Case | 2-SMD, No Lead |
| Size / Dimension [x] | 2.36 mm |
| Size / Dimension [x] | 0.093 in |
| Size / Dimension [y] | 2.36 mm |
| Size / Dimension [y] | 0.093 in |
| Supplier Device Package | SMD |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 2.9 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 20000 | $ 0.26 | |
| 28000 | $ 0.25 | |||
Description
General part information
SCP8WTF1 Series
LED Lighting LH181B White, Warm 2700K 3-Step MacAdam Ellipse 2.9V 350mA 120° 2-SMD, No Lead
