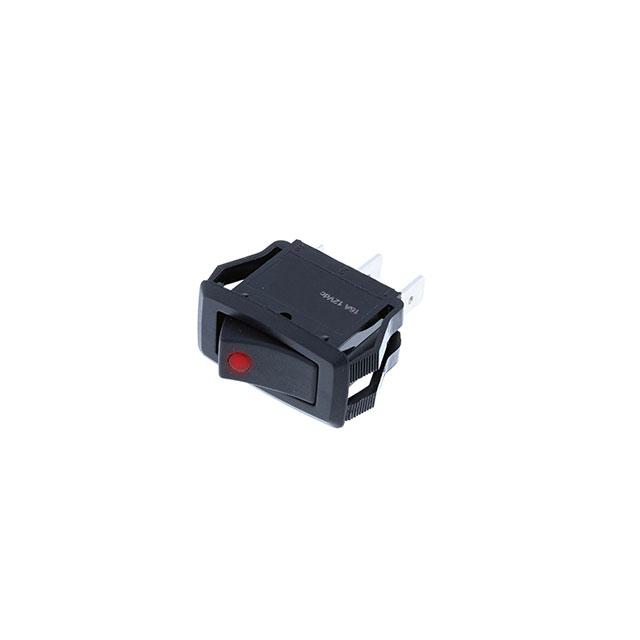

RG2-1A-DC-1-RL
ActiveSwitch Components
SWITCH ROCKER SPST 16A 12V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RG2-1A-DC-1-RL |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Concave (Curved) - Illuminated |
| Approval Agency | CSA, cURus, ENEC |
| Circuit | SPST |
| Color - Actuator/Cap | Black |
| Current Rating (Amps) | 16 A |
| Electrical Life | 6000 Cycles |
| Illumination Type, Color | Red, LED |
| Illumination Voltage (Nominal) | 12 VDC |
| Mechanical Life | 10000 Steps |
| Mounting Type | Panel Mount, Snap-In |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Panel Cutout Dimensions [x] | 27.6 mm |
| Panel Cutout Dimensions [y] | 13.8 mm |
| Switch Function | On-Off |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Voltage Rating - DC | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 3.38 | |
| 10 | $ 3.25 | |||
| 25 | $ 3.12 | |||
| 50 | $ 2.95 | |||
| 100 | $ 2.81 | |||
| 250 | $ 2.67 | |||
| 500 | $ 2.43 | |||
| 1000 | $ 2.22 | |||
Description
General part information
RG2-1A Series
Rocker Switch SPST 16A (DC) Panel Mount, Snap-In
