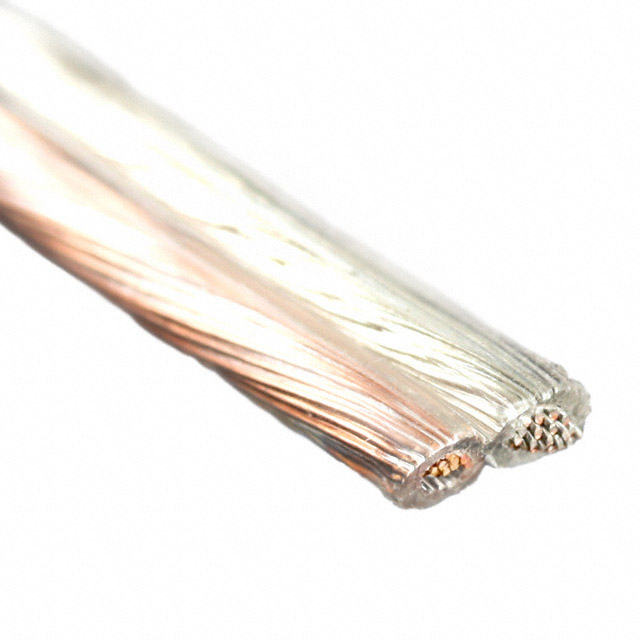

C1358.18.90

Active

Prysmian Group

CABLE SPKR 2COND 16AWG CLR

Search across all available documentation for this part.

Active

Prysmian Group

CABLE SPKR 2COND 16AWG CLR

Technical Specifications

Parameters and characteristics for this part

Specification	C1358.18.90

Cable Type	Speaker
Conductor Material	Copper, Tinned, Copper, Bare
Conductor Strand [custom]	30 AWG
Conductor Strand [custom]	26
Jacket (Insulation) Diameter [diameter]	5.33 mm
Jacket (Insulation) Diameter [diameter]	0.21 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.02 in
Jacket (Insulation) Thickness	0.508 mm
Jacket Color	Clear
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	2
Usage	Home, Audio-Video
Voltage	120 V
Wire Gauge	16 AWG

Part	Number of Conductors	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Cable Type	Wire Gauge	Jacket (Insulation) Material	Length	Length	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Voltage	Usage	Conductor Material	Length [x]	Length [x]	Jacket Color
Prysmian Group C1358.41.90	2	0.02 in	0.508 mm	Speaker	16 AWG	Poly-Vinyl Chloride (PVC)	1000 ft	15.24 m 304.8 m	30 AWG	26	5.33 mm	0.21 in	120 V	Audio-Video Home	Copper Bare Copper Tinned	30.5 m	50 ft 100 ft	Clear
Prysmian Group C1358.38.90	2	0.02 in	0.508 mm	Speaker	16 AWG	Poly-Vinyl Chloride (PVC)			30 AWG	26	5.33 mm	0.21 in	120 V	Audio-Video Home	Copper Bare Copper Tinned	152.4 m	500 '	Clear
Prysmian Group C1358.18.90	2	0.02 in	0.508 mm	Speaker	16 AWG	Poly-Vinyl Chloride (PVC)			30 AWG	26	5.33 mm	0.21 in	120 V	Audio-Video Home	Copper Bare Copper Tinned	152.4 m	500 '	Clear
Prysmian Group C1358.18.01	2	0.02 in	0.508 mm	Speaker	16 AWG	Poly-Vinyl Chloride (PVC)			30 AWG	26	5.33 mm	0.21 in	120 V	Audio-Video Home	Copper Bare Copper Tinned	152.4 m	500 '	Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Conductor Speaker Cable Clear 16 AWG 500.0' (152.4m)
