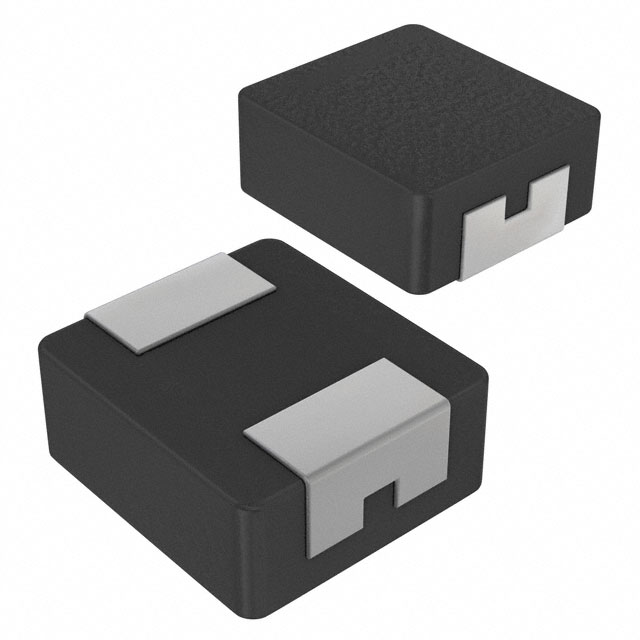

SRP4020TA-2R2M

Active

Bourns Inc.

INDUCTOR POWER SHIELDED WIREWOUND 2.2UH 20% 100KHZ 10Q-FACTOR CARBONYL POWDER 4A 0.061OHM DCR 1616 T/R AUTOMOTIVE AEC-Q200

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet SRP1012TA, SRP4020TA Series Bulletin +1

SRP4020TA-2R2M

Active

Bourns Inc.

INDUCTOR POWER SHIELDED WIREWOUND 2.2UH 20% 100KHZ 10Q-FACTOR CARBONYL POWDER 4A 0.061OHM DCR 1616 T/R AUTOMOTIVE AEC-Q200

Deep-Dive with AI

DocumentsDatasheet SRP1012TA, SRP4020TA Series Bulletin +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SRP4020TA-2R2M

Current - Saturation (Isat)	6 A
Current Rating (Amps)	4 A
DC Resistance (DCR) [Max]	61 mOhm
Frequency - Self Resonant	45 MHz
Height - Seated (Max) [Max] [z]	2 mm
Height - Seated (Max) [Max] [z]	0.079 in
Inductance	2.2 µH
Inductance Frequency - Test	100 kHz
Material - Core	Carbonyl Powder
Mounting Type	Surface Mount
Package / Case	2-SMD
Q @ Freq	100 kHz, 10
Ratings	AEC-Q200
Shielding	Shielded
Size / Dimension [x]	0.175 in, 4.45 mm
Size / Dimension [y]	0.16 in, 4.06 mm
Supplier Device Package	2-SMD
Tolerance	20 %
Type	Wirewound, Drum Core

SRP4020TA Series

Part	Ratings	Material - Core	Package / Case	Shielding	Size / Dimension [x]	Size / Dimension [y]	Current - Saturation (Isat)	Frequency - Self Resonant	Inductance Frequency - Test	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Supplier Device Package	Mounting Type	Tolerance	Type	DC Resistance (DCR)	Current Rating (Amps)	Q @ Freq	Inductance	DC Resistance (DCR) [Max]
Bourns Inc. SRP4020TA-R68M	AEC-Q200	Carbonyl Powder	2-SMD	Shielded	0.175 in 4.45 mm	0.16 in 4.06 mm	10 A	100 MHz	100 kHz	2 mm	0.079 in	2-SMD	Surface Mount	20 %	Drum Core Wirewound	19 mOhm	7 A	10 100 kHz	0.68 µH
Bourns Inc. SRP4020TA-6R8M	AEC-Q200	Carbonyl Powder	2-SMD	Shielded	0.175 in 4.45 mm	0.16 in 4.06 mm	2.8 A	24 MHz	100 kHz	2 mm	0.079 in	2-SMD	Surface Mount	20 %	Drum Core Wirewound		2.1 A	10 100 kHz	6.8 µH	172 mOhm
Bourns Inc. SRP4020TA-2R2M	AEC-Q200	Carbonyl Powder	2-SMD	Shielded	0.175 in 4.45 mm	0.16 in 4.06 mm	6 A	45 MHz	100 kHz	2 mm	0.079 in	2-SMD	Surface Mount	20 %	Drum Core Wirewound		4 A	10 100 kHz	2.2 µH	61 mOhm
Bourns Inc. SRP4020TA-R56M	AEC-Q200	Carbonyl Powder	2-SMD	Shielded	0.175 in 4.45 mm	0.16 in 4.06 mm	10 A	105 MHz	100 kHz	2 mm	0.079 in	2-SMD	Surface Mount	20 %	Drum Core Wirewound	16 mOhm	7.3 A	10 100 kHz	560 nH

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.26
		10	$ 1.06
		25	$ 0.97
		50	$ 0.91
		100	$ 0.75
		250	$ 0.70
		500	$ 0.66
		1000	$ 0.60
	Digi-Reel®	1	$ 1.26
		10	$ 1.06
		25	$ 0.97
		50	$ 0.91
		100	$ 0.75
		250	$ 0.70
		500	$ 0.66
		1000	$ 0.60
	Tape & Reel (TR)	3000	$ 0.58
		6000	$ 0.56
		15000	$ 0.54
Newark	Each (Supplied on Full Reel)	3000	$ 0.52

Description

General part information

SRP4020TA Series

The SRP4020TA series shielded Power Inductor with carbonyl powder core and tin termination. It has enamelled copper wire winding and suitable for DC/DC converters.

Documents

Technical documentation and resources

Datasheet

SRP1012TA, SRP4020TA Series Bulletin

Datasheet

Technical Data Sheet EN

Datasheet
