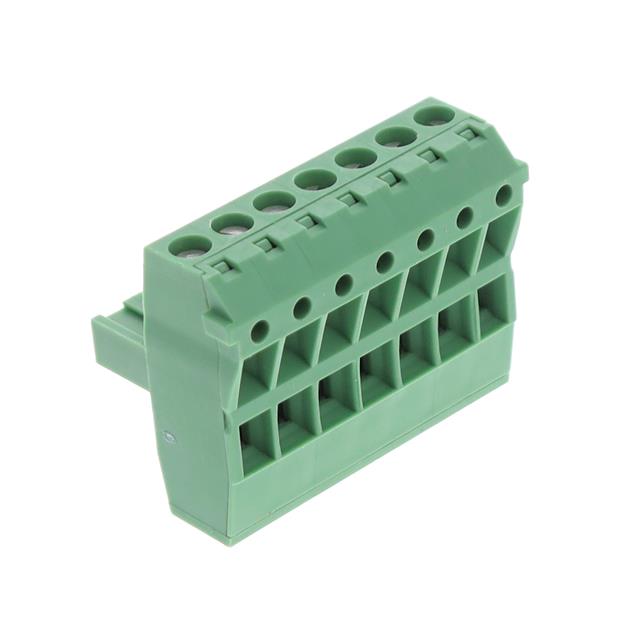

1853065

Active

Phoenix Contact

PLUGGABLE TERMINAL BLOCKS 7 POS 5.08MM PITCH PLUG 24-12 AWG SCREW

Search across all available documentation for this part.

Active

Phoenix Contact

PLUGGABLE TERMINAL BLOCKS 7 POS 5.08MM PITCH PLUG 24-12 AWG SCREW

Technical Specifications

Parameters and characteristics for this part

Specification	1853065

Color	Green
Contact Mating Finish	Tin
Current - IEC	12 A
Housing Material	Polyamide (PA), Nylon
Insulation Height	1.138 in
Insulation Height	28.9 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Levels	1 (Mate), 2 (Input)
Number of Positions	7
Pitch [x]	0.2 in
Pitch [x]	5.08 mm
Positions Per Level [custom]	7
Positions Per Level [custom]	14
Screw Size	M3
Termination Style	Screw - Rising Cage Clamp
Torque - Screw [Max]	0.6 Nm
Torque - Screw [Max]	5.3 Lb-In
Torque - Screw [Min]	4.4 Lb-In
Torque - Screw [Min]	0.5 Nm
Type	Plug, Female Sockets
Voltage - IEC	630 V
Voltage - UL	300 V
Wire Gauge or Range - AWG [Max]	30 AWG
Wire Gauge or Range - AWG [Min]	12 AWG
Wire Gauge or Range - mm² [Max]	2.5 mm²
Wire Gauge or Range - mm² [Min]	0.2 mm²
Wire Strip Length	7 mm

Pluggable Terminal Blocks 7 Pos 5.08mm pitch Plug 24-12 AWG Screw

Part	Voltage - IEC	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Torque - Screw [Max]	Torque - Screw [Max]	Torque - Screw [Min]	Torque - Screw [Min]	Wire Strip Length	Mounting Type	Positions Per Level [custom]	Positions Per Level [custom]	Contact Mating Finish	Current - IEC	Voltage - UL	Number of Levels	Termination Style	Number of Positions	Material Flammability Rating	Screw Size	Housing Material	Pitch [x]	Pitch [x]	Insulation Height	Insulation Height	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Color	Type
Phoenix Contact 1853065	630 V	30 AWG	12 AWG	0.6 Nm	5.3 Lb-In	4.4 Lb-In	0.5 Nm	7 mm	Free Hanging (In-Line)	7	14	Tin	12 A	300 V	1 (Mate) 2 (Input)	Screw - Rising Cage Clamp	7	UL94 V-0	M3	Polyamide (PA) Nylon	0.2 in	5.08 mm	1.138 in	28.9 mm	0.2 mm²	2.5 mm²	Green	Plug Female Sockets

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pluggable Terminal Blocks 7 Pos 5.08mm pitch Plug 24-12 AWG Screw
