2964380

Active

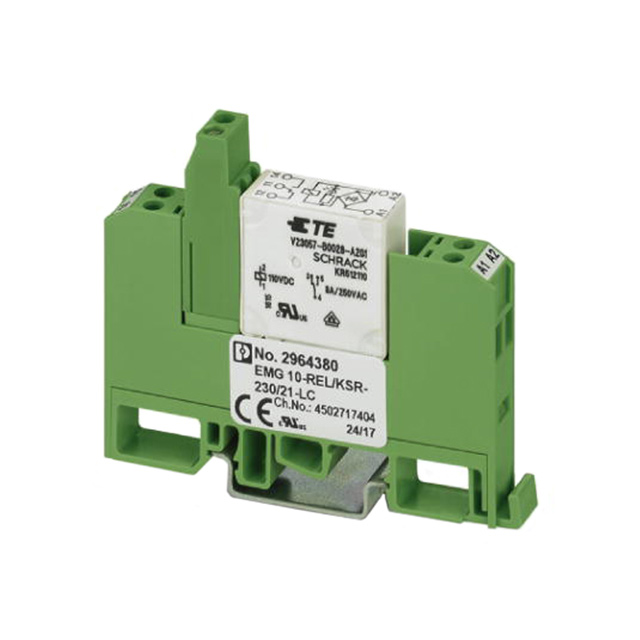

Phoenix Contact

RELAY GEN PURPOSE SPDT 6A 230V

Search across all available documentation for this part.

Active

Phoenix Contact

RELAY GEN PURPOSE SPDT 6A 230V

Technical Specifications

Parameters and characteristics for this part

Specification	2964380

Approval Agency	UL, EAC, cULus
Coil Current	5 mA
Coil Resistance	46 kOhms
Coil Type	Non Latching
Coil Voltage	230 VAC
Contact Form	SPDT (1 Form C)
Contact Material	Silver Nickel (AgNi)
Contact Rating (Current)	6 A
Features	Lighted Indicator, Varistor, Socket Included
Load - Max Switching	140 W, 1500 VA
Mounting Type	DIN Rail
Operate Time	7 ms
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	-20 C
Relay Type	General Purpose
Release Time	11 ms
Switching Voltage	250 VAC, 250 VDC
Termination Style	Screw Terminal

Part	Features	Switching Voltage	Contact Material	Coil Type	Contact Form	Contact Rating (Current)	Relay Type	Operate Time	Release Time	Operating Temperature [Min]	Operating Temperature [Max]	Coil Current	Load - Max Switching	Coil Voltage	Approval Agency	Termination Style	Coil Resistance	Mounting Type
Phoenix Contact 2964380	Lighted Indicator Socket Included Varistor	250 VAC 250 VDC	Silver Nickel (AgNi)	Non Latching	SPDT (1 Form C)	6 A	General Purpose	7 ms	11 ms	-20 C	40 °C	5 mA	140 W 1500 VA	230 VAC	cULus EAC UL	Screw Terminal	46 kOhms	DIN Rail

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 69.63

General part information

General Purpose Relay SPDT (1 Form C) 230VAC/DC Coil DIN Rail
