QBLP650-S3
ActiveQT Brightek (QTB)

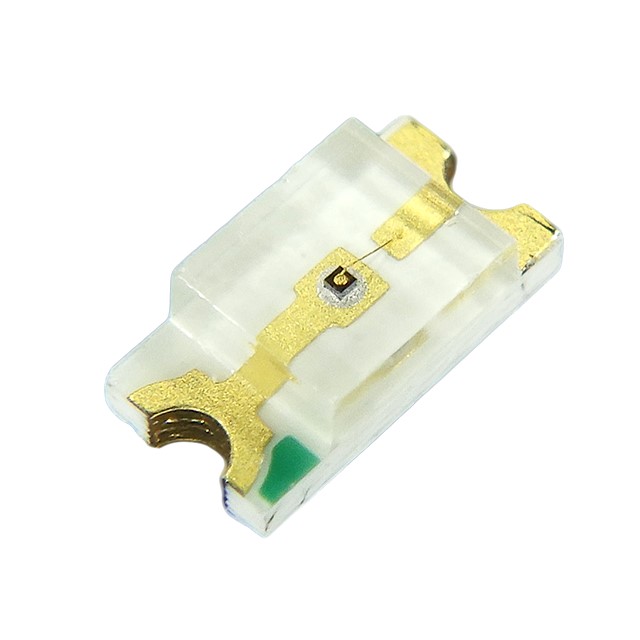

LED RED CLEAR 1206 SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
QBLP650-S3
ActiveQT Brightek (QTB)
LED RED CLEAR 1206 SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | QBLP650-S3 |
|---|---|
| Color | Red |
| Configuration | Standard |
| Current - Test | 20 mA |
| Height (Max) [Max] | 1.2 mm |
| Lens Color | Colorless |
| Lens Size [x] | 2 mm |
| Lens Size [y] | 1.6 mm |
| Lens Style | Rectangle with Flat Top |
| Lens Transparency | Clear |
| Millicandela Rating | 25 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 1206 (3216 Metric) |
| Size / Dimension [x] | 3.2 mm |
| Size / Dimension [y] | 1.6 mm |
| Supplier Device Package | 1206 |
| Viewing Angle | 140 ° |
| Voltage - Forward (Vf) (Typ) | 2 V |
| Wavelength - Dominant | 640 nm |
| Wavelength - Peak | 660 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.37 | |
| 10 | $ 0.24 | |||
| 100 | $ 0.16 | |||
| 500 | $ 0.11 | |||
| 1000 | $ 0.09 | |||
| Digi-Reel® | 1 | $ 0.37 | ||
| 10 | $ 0.24 | |||
| 100 | $ 0.16 | |||
| 500 | $ 0.11 | |||
| 1000 | $ 0.09 | |||
| Tape & Reel (TR) | 3000 | $ 0.08 | ||
| 6000 | $ 0.08 | |||
| 15000 | $ 0.07 | |||
| 30000 | $ 0.07 | |||
| 75000 | $ 0.06 | |||
| 150000 | $ 0.06 | |||
Description
General part information
QBLP650 Series
Red 640nm LED Indication - Discrete 2.0V 1206 (3216 Metric)
Documents
Technical documentation and resources
