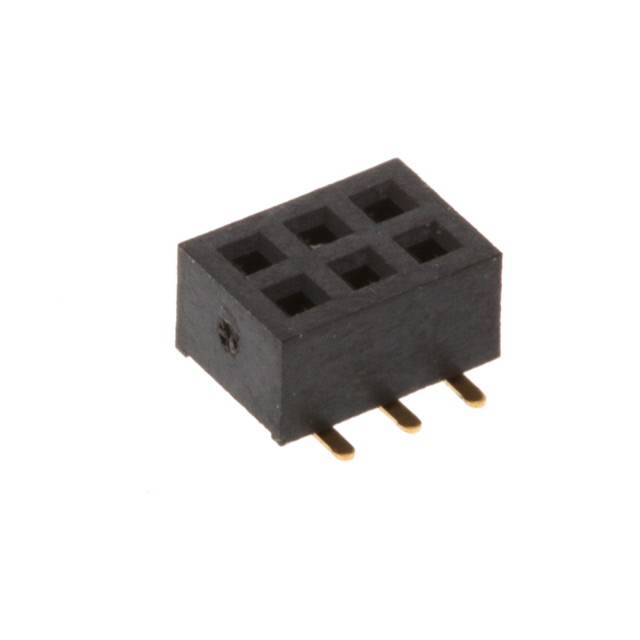

FM20B03VBDN

Active

METZ CONNECT USA Inc.

RECEPTACLE, SMT, DUAL ROW, 1.27

Search across all available documentation for this part.

Active

METZ CONNECT USA Inc.

RECEPTACLE, SMT, DUAL ROW, 1.27

Technical Specifications

Parameters and characteristics for this part

Specification	FM20B03VBDN

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Female Socket
Fastening Type	Push-Pull
Ingress Protection	IP00
Insulation Color	Black
Insulation Height	0.084 in
Insulation Height	2.14 mm
Insulation Material	Polyamide (PA6), Nylon 6
Mounting Type	Surface Mount
Number of Positions	6
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating	0.05 in
Row Spacing - Mating	1.27 mm
Termination	Solder

Part	Number of Rows	Number of Positions	Insulation Color	Contact Finish - Mating	Connector Type	Contact Finish Thickness - Mating	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Termination	Fastening Type	Insulation Material	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Contact Type	Contact Shape	Contact Material	Insulation Height	Insulation Height	Row Spacing - Mating	Row Spacing - Mating	Mounting Type
METZ CONNECT USA Inc. FM20B03VBDN	2	6	Black	Gold	Receptacle	Flash	All	0.05 in	1.27 mm	Solder	Push-Pull	Polyamide (PA6) Nylon 6	-40 °C	105 ░C	IP00	Female Socket	Square	Copper Alloy	0.084 in	2.14 mm	0.05 in	1.27 mm	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 Position Receptacle Connector 0.050" (1.27mm) Surface Mount Gold

Technical documentation and resources

No documents available
