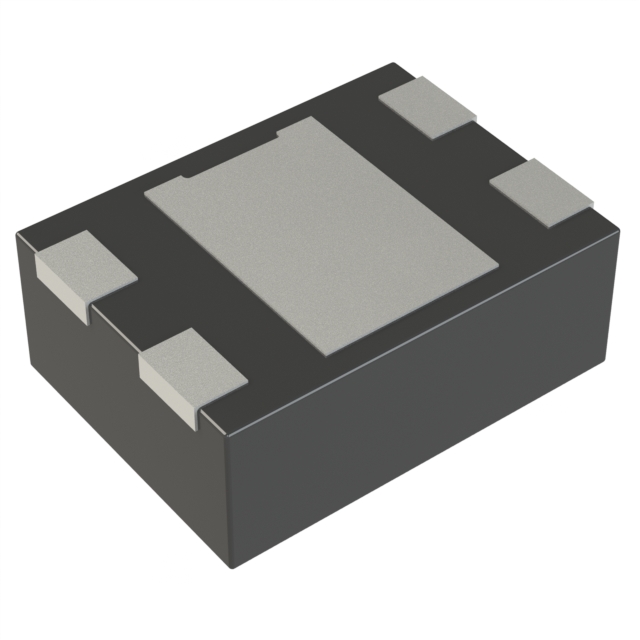

XC6217B28AGR-G

Active

Torex Semiconductor Ltd

IC REG LINEAR 2.85V 200MA USP-4D

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

XC6217B28AGR-G

Active

Torex Semiconductor Ltd

IC REG LINEAR 2.85V 200MA USP-4D

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	XC6217B28AGR-G

Control Features	Enable
Current - Output	200 mA
Current - Quiescent (Iq)	8 ÁA
Current - Supply (Max) [Max]	50 µA
Mounting Type	Surface Mount
Number of Regulators	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output Configuration	Positive
Output Type	1.81 mOhm
Package / Case	4-UDFN Exposed Pad
Protection Features	Over Current
PSRR	70 dB
Supplier Device Package	USP-4D
Voltage - Input (Max) [Max]	6 V
Voltage - Output (Min/Fixed)	2.85 V
Voltage Dropout (Max) [Max]	0.17 V

XC6217 Series

...

Part	Voltage - Output (Min/Fixed)	Voltage - Input (Max) [Max]	Protection Features	Operating Temperature [Max]	Operating Temperature [Min]	Control Features	Voltage Dropout (Max) [Max]	Supplier Device Package	Number of Regulators	PSRR	Current - Quiescent (Iq)	Output Type	Current - Supply (Max) [Max]	Output Configuration	Package / Case	Mounting Type	Current - Output
Torex Semiconductor Ltd XC6217C13ANR-G	1.35 V	6 V	Over Current	85 °C	-40 °C	Enable	0.41 V	SSOT-24	1	70 dB	8 ÁA	1.81 mOhm	50 µA	Positive	SC-82	Surface Mount	200 mA
Torex Semiconductor Ltd XC6217C3327R-G	3.3 V	6 V	Over Current	85 °C	-40 °C	Enable	0.14 V	4-USPN (0.90x1.2)	1	70 dB	8 ÁA	1.81 mOhm	50 µA	Positive	4-XDFN	Surface Mount	200 mA
Torex Semiconductor Ltd XC6217A32AMR-G	3.25 V	6 V	Over Current	85 °C	-40 °C	Enable	0.14 V	SOT-25	1	70 dB	8 ÁA	1.81 mOhm	50 µA	Positive	SC-74A SOT-753	Surface Mount	200 mA
Torex Semiconductor Ltd XC6217C19ANR-G	1.95 V	6 V	Over Current	85 °C	-40 °C	Enable	0.21 V	SSOT-24	1	70 dB	8 ÁA	1.81 mOhm	50 µA	Positive	SC-82	Surface Mount	200 mA
Torex Semiconductor Ltd XC6217C132MR-G	1.3 V	6 V	Over Current	85 °C	-40 °C	Enable	0.41 V	SOT-25	1	70 dB	8 ÁA	1.81 mOhm	50 µA	Positive	SC-74A SOT-753	Surface Mount	200 mA
Torex Semiconductor Ltd XC6217B28AGR-G	2.85 V	6 V	Over Current	85 °C	-40 °C	Enable	0.17 V	USP-4D	1	70 dB	8 ÁA	1.81 mOhm	50 µA	Positive	4-UDFN Exposed Pad	Surface Mount	200 mA
Torex Semiconductor Ltd XC6217A34A7R-G	3.45 V	6 V	Over Current	85 °C	-40 °C	Enable	0.14 V	4-USPN (0.90x1.2)	1	70 dB	8 ÁA	1.81 mOhm	50 µA	Positive	4-XDFN	Surface Mount	200 mA
Torex Semiconductor Ltd XC6217B162MR-G	1.6 V	6 V	Over Current	85 °C	-40 °C	Enable	0.25 V	SOT-25	1	70 dB	8 ÁA	1.81 mOhm	50 µA	Positive	SC-74A SOT-753	Surface Mount	200 mA
Torex Semiconductor Ltd XC6217D13ANR-G	1.35 V	6 V	Over Current	85 °C	-40 °C	Enable	0.41 V	SSOT-24	1	70 dB	8 ÁA	1.81 mOhm	50 µA	Positive	SC-82	Surface Mount	200 mA
Torex Semiconductor Ltd XC6217A272NR-G	2.7 V	6 V	Over Current	85 °C	-40 °C	Enable	0.17 V	SSOT-24	1	70 dB	8 ÁA	1.81 mOhm	50 µA	Positive	SC-82	Surface Mount	200 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	3000	$ 0.36
		6000	$ 0.34
		15000	$ 0.33
		30000	$ 0.32

Description

General part information

XC6217 Series

Linear Voltage Regulator IC Positive Fixed 1 Output 200mA USP-4D
