M22-6003005
ActiveHarwin Inc.

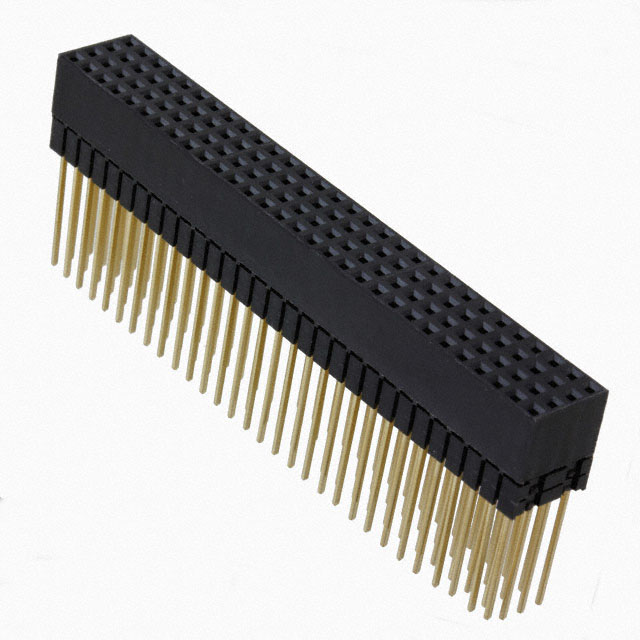

PCB RECEPTACLE, PC104, BOARD-TO-BOARD, 2 MM, 4 ROWS, 120 CONTACTS, THROUGH HOLE MOUNT, M22 SERIES
Deep-Dive with AI
Search across all available documentation for this part.
M22-6003005
ActiveHarwin Inc.
PCB RECEPTACLE, PC104, BOARD-TO-BOARD, 2 MM, 4 ROWS, 120 CONTACTS, THROUGH HOLE MOUNT, M22 SERIES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | M22-6003005 |
|---|---|
| Color | Black |
| Connector Style | PC/104 Plus |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 120 |
| Number of Positions Loaded | All |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Pitch [x] | 0.079 in |
| Pitch [x] | 2 mm |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 18.79 | |
| 9 | $ 18.27 | |||
| 18 | $ 17.23 | |||
| 27 | $ 16.70 | |||
| 54 | $ 15.66 | |||
| 108 | $ 15.14 | |||
| 252 | $ 14.09 | |||
| 504 | $ 13.57 | |||
Description
General part information
M22-600 Series
The M22-6003005 is a 120-way 4-row PC/104 Plus Stackthrough Connector with solder tails, gold-plated phosphor bronze contact, black UL94V-0 polyamide (nylon) 6T housing and 2mm contact pitch.
