FAD1-05010DBLW11

Active

Qualtek

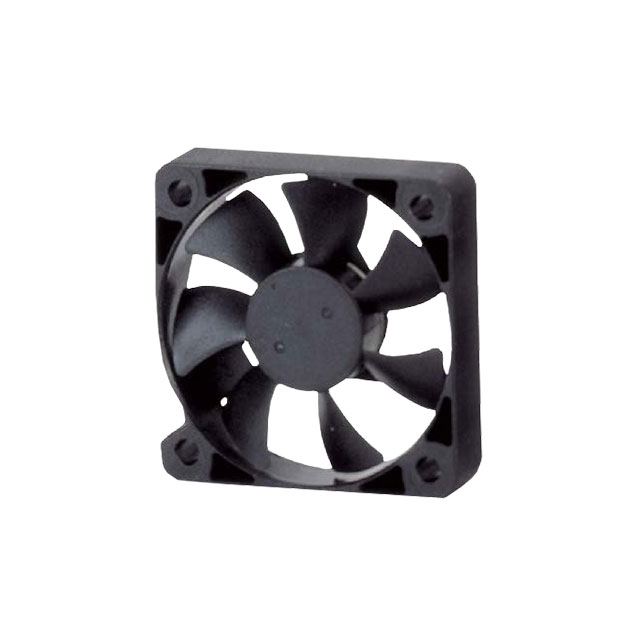

FAN AXIAL 50X10.5MM 24VDC WIRE

Search across all available documentation for this part.

Active

Qualtek

FAN AXIAL 50X10.5MM 24VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Part	Material - Frame	RPM	Voltage - Rated	Fan Type	Static Pressure	Static Pressure	Air Flow	Air Flow	Termination	Material - Blade	Bearing Type	Noise	Voltage Range [Min]	Voltage Range [Max]	Width [x]	Power (Watts)	Size / Dimension [z]	Size / Dimension [x]	Approval Agency	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Weight	Weight	Current Rating (Amps)
Qualtek FAD1-05010BBMW11	Plastic	4300 RPM	5 V	Tubeaxial	0.08 in H2O	19.9 Pa	9 CFM	0.252 mł/min	2 Wire Leads	Plastic	Ball	24 dB	4.5 V	5.5 V	10.5 mm	0.65 W	50 mm	50 mm	CE cURus TUV	70 °C	70 °C	-10 °C	-10 °C	0.04 lb	18.14 g
Qualtek FAD1-05010DBLW11	Plastic	3700 RPM	24 VDC	Tubeaxial	0.05 in H2O	12.4 Pa	8 CFM	0.224 mł/min	2 Wire Leads	Plastic	Ball	20 dB	21.6 VDC	26.4 VDC	10.5 mm	1.2 W	50 mm	50 mm	CE cURus TUV	70 °C	70 °C	-10 °C	-10 °C	0.04 lb	18.14 g	50 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Fan Tubeaxial 24VDC Square - 50mm L x 50mm H Ball 8.0 CFM (0.224m³/min) 2 Wire Leads
