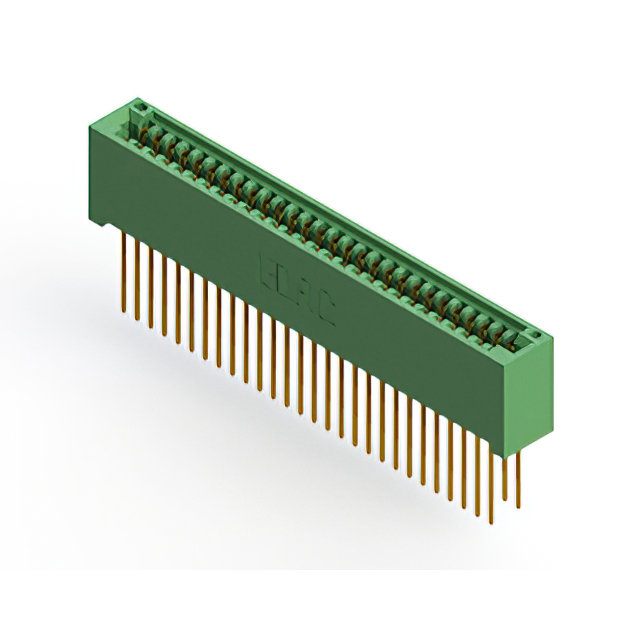

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 56 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsInterconnect Solutions Brochure Card Edge Brochure +1

345-056-540-201

Active

EDAC Inc.

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 56 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Deep-Dive with AI

DocumentsInterconnect Solutions Brochure Card Edge Brochure +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	345-056-540-201

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions	56
Number of Positions/Bay/Row [custom]	28
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Dual
Termination	Wire Wrap
Termination Rows	2

345-056 Series

...

Part	Contact Finish Thickness	Contact Finish Thickness	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Termination	Gender	Termination Rows	Number of Rows	Material - Insulation	Pitch [x]	Pitch [x]	Features	Read Out	Contact Finish	Mounting Type	Contact Type	Color	Number of Positions	Card Type	Flange Feature	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Number of Positions/Bay/Row [custom]	Flange Feature	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 345-056-500-888	10 Áin	0.25 Ám	-40 °C	105 ░C	Copper Alloy	Solder Eyelet(s)	Female	2	2	Polyester Thermoplastic	2.54 mm	0.1 in	Card Guides	Dual	Gold	Through Hole	Cantilever	Green	56	Non Specified - Dual Edge	4-40 Threaded Insert Top Mount Opening	1.37 mm	0.054 "	1.78 mm	0.07 in	28
EDAC Inc. 345-056-520-658	10 Áin	0.25 Ám	-40 °C	105 ░C	Copper Alloy	Solder	Female	1	1	Polyester Thermoplastic	2.54 mm	0.1 in	Card Guides	Single	Gold	Through Hole	Cantilever	Green	56	Non Specified - Single Edge	4-40 Threaded Insert Top Mount Opening	1.37 mm	0.054 "	1.78 mm	0.07 in	56
EDAC Inc. 345-056-521-512	10 Áin	0.25 Ám	-40 °C	105 ░C	Copper Alloy	Solder	Female	2	2	Polyester Thermoplastic	2.54 mm	0.1 in		Dual	Gold	Through Hole	Cantilever	Green	56	Non Specified - Dual Edge	Side Mount Opening Unthreaded	1.37 mm	0.054 "	1.78 mm	0.07 in	28	3.25 mm	0.128 in
EDAC Inc. 345-056-521-107	10 Áin	0.25 Ám	-40 °C	105 ░C	Copper Alloy	Solder	Female	1	1	Polyester Thermoplastic	2.54 mm	0.1 in		Single	Gold	Through Hole	Cantilever	Green	56	Non Specified - Single Edge	Flush Mount M3 Threaded Insert Top Opening	1.37 mm	0.054 "	1.78 mm	0.07 in	56
EDAC Inc. 345-056-540-201	10 Áin	0.25 Ám	-40 °C	105 ░C	Copper Alloy	Wire Wrap	Female	2	2	Polyester Thermoplastic	2.54 mm	0.1 in		Dual	Gold	Through Hole	Cantilever	Green	56	Non Specified - Dual Edge		1.37 mm	0.054 "	1.78 mm	0.07 in	28
EDAC Inc. 345-056-524-578	10 Áin	0.25 Ám	-40 °C	105 ░C	Copper Alloy	Solder	Female	2	2	Polyester Thermoplastic	2.54 mm	0.1 in	Card Guides	Dual	Gold	Through Hole	Cantilever	Green	56	Non Specified - Dual Edge	4-40 Threaded Insert Top Mount Opening	1.37 mm	0.054 "	1.78 mm	0.07 in	28
EDAC Inc. 345-056-544-878	10 Áin	0.25 Ám	-40 °C	105 ░C	Copper Alloy	Wire Wrap	Female	2	2	Polyester Thermoplastic	2.54 mm	0.1 in	Card Guides	Dual	Gold	Through Hole	Cantilever	Green	56	Non Specified - Dual Edge	4-40 Threaded Insert Top Mount Opening	1.37 mm	0.054 "	1.78 mm	0.07 in	28
EDAC Inc. 345-056-558-188	10 Áin	0.25 Ám	-40 °C	105 ░C	Copper Alloy	Solder	Female	1	1	Polyester Thermoplastic	2.54 mm	0.1 in	Card Guides	Single	Gold	Through Hole Right Angle	Cantilever	Green	56	Non Specified - Single Edge	4-40 Flush Mount Threaded Insert Top Opening	1.37 mm	0.054 "	1.78 mm	0.07 in	56
EDAC Inc. 345-056-520-607	10 Áin	0.25 Ám	-40 °C	105 ░C	Copper Alloy	Solder	Female	1	1	Polyester Thermoplastic	2.54 mm	0.1 in		Single	Gold	Through Hole	Cantilever	Green	56	Non Specified - Single Edge	M3 Threaded Insert Top Mount Opening	1.37 mm	0.054 "	1.78 mm	0.07 in	56
EDAC Inc. 345-056-560-212	10 Áin	0.25 Ám	-40 °C	105 ░C	Copper Alloy	Solder	Female	2	2	Polyester Thermoplastic	2.54 mm	0.1 in	Card Extender	Dual	Gold	Board Edge Straddle Mount	Cantilever	Green	56	Non Specified - Dual Edge	Flush Mount Side Opening Unthreaded	1.37 mm	0.054 "	1.78 mm	0.07 in	28			3.25 mm	0.128 "
