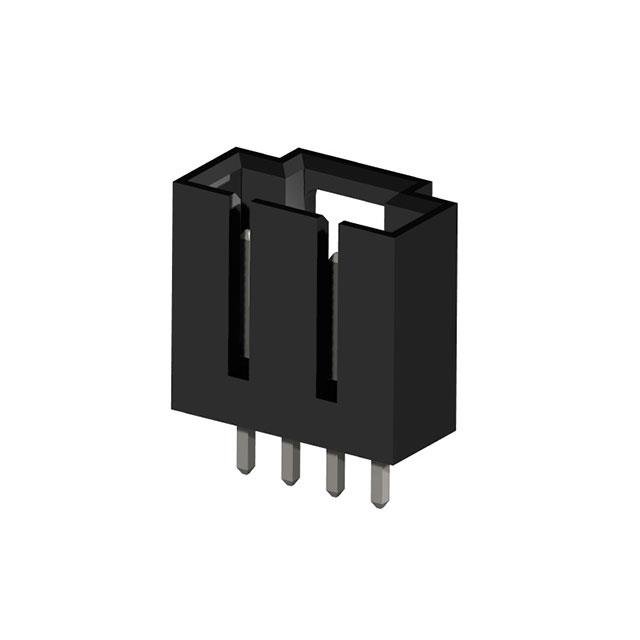

CI3302P1V10

Active

Cvilux USA

CONN HEADER VERT 2POS 2.54MM

Search across all available documentation for this part.

Active

Cvilux USA

CONN HEADER VERT 2POS 2.54MM

Technical Specifications

Parameters and characteristics for this part

Specification	CI3302P1V10

Connector Type	Header
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	120 µin
Contact Finish Thickness - Mating	3.05 Ám
Contact Length - Post [x]	0.134 in
Contact Length - Post [x]	3.4 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Latch Holder
Insulation Color	Black
Insulation Height	11.5 mm
Insulation Height	0.453 in
Insulation Material	Nylon, Polyamide (PA), Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	2
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	250 VAC

Part	Style	Contact Length - Post [x]	Contact Length - Post [x]	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Pitch - Mating	Pitch - Mating	Insulation Height	Insulation Height	Connector Type	Contact Shape	Material Flammability Rating	Shrouding	Insulation Color	Contact Material	Mounting Type	Number of Rows	Current Rating (Amps)	Termination	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions Loaded	Contact Finish - Post	Contact Type	Voltage Rating	Insulation Material	Fastening Type
Cvilux USA CI3302P1V10	Board to Cable/Wire	0.134 in	3.4 mm	-40 °C	105 ░C	2	0.1 in	2.54 mm	11.5 mm	0.453 in	Header	Square	UL94 V-0	Shrouded - 4 Wall	Black	Brass	Through Hole	1	3 A	Solder	120 µin	3.05 Ám	All	Tin	Male Pin	250 VAC	Glass Filled Nylon Polyamide (PA)	Latch Holder

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole 2 position 0.100" (2.54mm)
