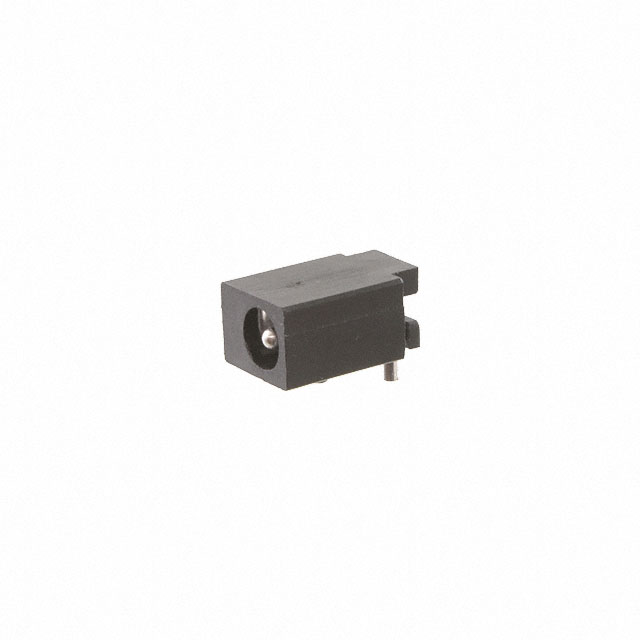

ADC-055B-9
ActiveAdam Tech
DC POWER JACK
Deep-Dive with AI
Search across all available documentation for this part.
ADC-055B-9
ActiveAdam Tech
DC POWER JACK
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ADC-055B-9 |
|---|---|
| Actual Diameter [diameter] | 1.65 mm, 4.4 mm |
| Actual Diameter [diameter] | 0.173 ", 0.065 " |
| Body Color | Black |
| Connector Type | Jack |
| Contact Material | Copper Alloy |
| Contact Material - Plating [custom] | Silver |
| Current Rating (Amps) | 2 A |
| Features | Board Guide |
| Gender | Male |
| Housing Material | Polybutylene Terephthalate (PBT) |
| Industry Recognized Mating Diameter | 1.7 mm, 4 mm |
| Industry Recognized Mating Diameter [custom] | 0.157 " |
| Industry Recognized Mating Diameter [custom] | 0.067 " |
| Insulation Color | Black |
| Internal Switch(s) | Single Switch, Normally Closed |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions/Contacts | 3 Conductors, 2 Conductors |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Shielding | Unshielded |
| Termination | Solder |
| Voltage - Rated | 30 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 0.90 | |
| 10 | $ 0.68 | |||
| 25 | $ 0.61 | |||
| 50 | $ 0.57 | |||
| 100 | $ 0.52 | |||
| 250 | $ 0.47 | |||
| 500 | $ 0.44 | |||
| 1000 | $ 0.41 | |||
| 2500 | $ 0.37 | |||
Description
General part information
ADC-055B Series
Power Barrel Connector Jack 1.70mm ID (0.067"), 4.00mm OD (0.157") Through Hole, Right Angle
