FSW-3A

Active

OptiFuse

FUSE GLASS 3A 125VAC 7AG

Search across all available documentation for this part.

Active

OptiFuse

FUSE GLASS 3A 125VAC 7AG

Technical Specifications

Parameters and characteristics for this part

Specification	FSW-3A

Approval Agency	UL 248
Breaking Capacity @ Rated Voltage	200 A
Current Rating (Amps)	3 A
Mounting Type	Requires Holder
Package / Case	7AG
Package / Case [x]	0.25 in
Package / Case [y]	0.875 "
Response Time	Fast Blow
Size / Dimension [diameter]	0.25 in
Size / Dimension [diameter]	6.35 mm
Size / Dimension [x]	22.2 mm
Size / Dimension [x]	0.874 "
Voltage Rating - AC	125 V

Part	Package / Case [y]	Package / Case [x]	Package / Case	Current Rating (Amps)	Mounting Type	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [diameter]	Size / Dimension [diameter]	Approval Agency	Breaking Capacity @ Rated Voltage	Response Time	Voltage Rating - AC	Voltage Rating - DC
OptiFuse FSW-5A	0.875 "	0.25 in	7AG	5 A	Requires Holder	22.2 mm	0.874 "	0.25 in	6.35 mm	UL 248	200 A	Fast Blow	125 V
OptiFuse FSW-30A	0.875 "	0.25 in	7AG	30 A	Requires Holder	22.2 mm	0.874 "	0.25 in	6.35 mm	UL 248	1 kA	Fast Blow	32 V	32 V
OptiFuse FSW-1.5A	0.875 "	0.25 in	7AG	1.5 A	Requires Holder	22.2 mm	0.874 "	0.25 in	6.35 mm	UL 248		Fast Blow	125 V
OptiFuse FSW-1A	0.875 "	0.25 in	7AG	1 A	Requires Holder	22.2 mm	0.874 "	0.25 in	6.35 mm	UL 248		Fast Blow	125 V
OptiFuse FSW-10A	0.875 "	0.25 in	7AG	10 A	Requires Holder	22.2 mm	0.874 "	0.25 in	6.35 mm	UL 248	1 kA	Fast Blow	32 V	32 V
OptiFuse FSW-3A	0.875 "	0.25 in	7AG	3 A	Requires Holder	22.2 mm	0.874 "	0.25 in	6.35 mm	UL 248	200 A	Fast Blow	125 V
OptiFuse FSW-20A	0.875 "	0.25 in	7AG	20 A	Requires Holder	22.2 mm	0.874 "	0.25 in	6.35 mm	UL 248	1 kA	Fast Blow	32 V	32 V
OptiFuse FSW-15A	0.875 "	0.25 in	7AG	15 A	Requires Holder	22.2 mm	0.874 "	0.25 in	6.35 mm	UL 248	1 kA	Fast Blow	32 V	32 V
OptiFuse FSW-6A	0.875 "	0.25 in	7AG	6 A	Requires Holder	22.2 mm	0.874 "	0.25 in	6.35 mm	UL 248	1 kA	Fast Blow	32 V	32 V
OptiFuse FSW-25A	0.875 "	0.25 in	7AG	25 A	Requires Holder	22.2 mm	0.874 "	0.25 in	6.35 mm	UL 248	1 kA	Fast Blow	32 V	32 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.12

General part information

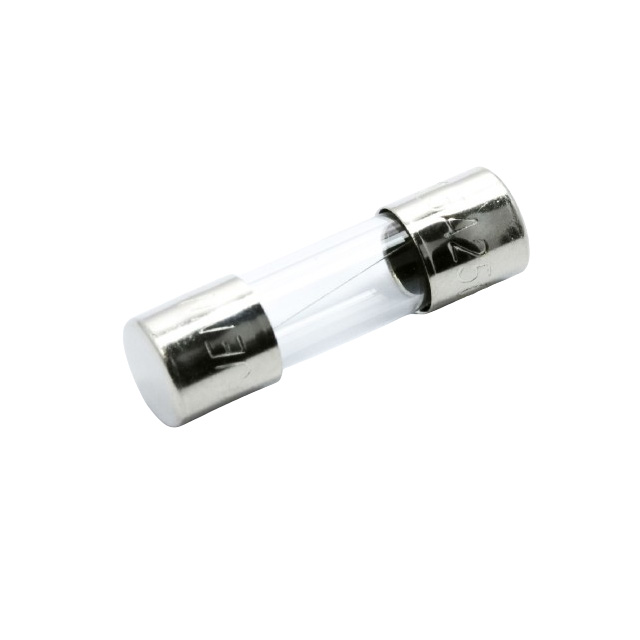

3 A 125 V AC DC Fuse Cartridge, Glass Requires Holder 7AG, 1/4" x 7/8"
