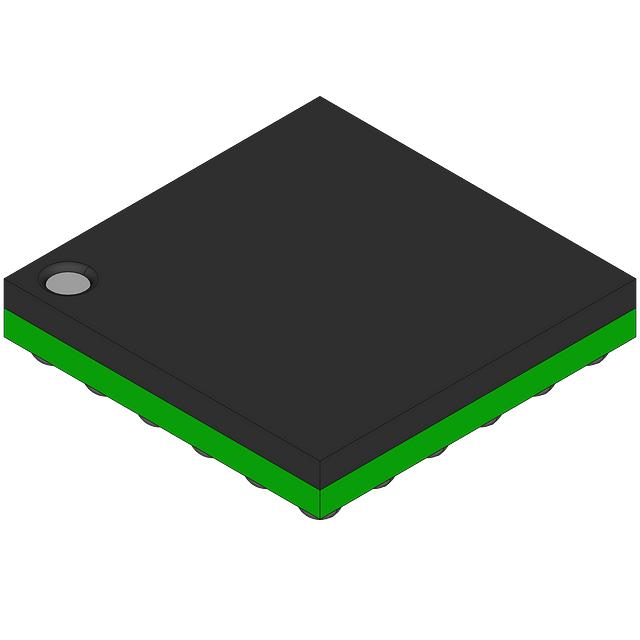

LP39542TLX/NOPB

Active

National Semiconductor

IC LED DRV RGLTR PWM 36USMD

Search across all available documentation for this part.

Active

National Semiconductor

IC LED DRV RGLTR PWM 36USMD

Technical Specifications

Parameters and characteristics for this part

Part	Supplier Device Package	Voltage - Supply (Max)	Package / Case	Mounting Type	Applications	Voltage - Output [Max]	Voltage - Output [Min]	Dimming	Current - Output / Channel	Internal Switch(s)	Type	Voltage - Supply (Min) [Min]	Number of Outputs	Operating Temperature [Min]	Operating Temperature [Max]	Topology	Frequency	Supplier Device Package [y]	Supplier Device Package [x]
National Semiconductor LP39542TLX/NOPB	36-uSMD	5.5 V	36-WFBGA	Surface Mount	Backlight Camera Flash	5.3 V	4 V	PWM	900 mA		DC DC Regulator	3 V	13	-30 °C	85 °C	Step-Up (Boost)	2 MHz
National Semiconductor LP39542RL/NOPB	36-DSBGA	5.5 V	36-WFBGA DSBGA	Surface Mount	Backlight Camera Flash	5.3 V	4 V	PWM	900 mA		DC DC Regulator	3 V	13	-30 °C	85 °C	Step-Up (Boost)	2 MHz	3.24	3.5

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	130	$ 2.32

General part information

LED Driver IC 13 Output DC DC Regulator Step-Up (Boost) PWM Dimming 900mA (Switch) 36-uSMD

Technical documentation and resources

No documents available
