BBD-102-T-B

Active

Samtec Inc.

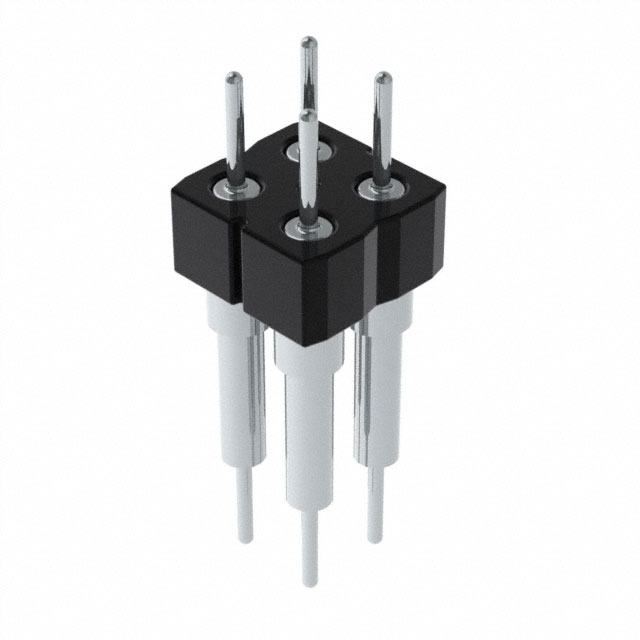

CONN HEADER VERT 4POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BBD-102-T-B

Active

Samtec Inc.

CONN HEADER VERT 4POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BBD-102-T-B

Connector Type	Header
Contact Finish - Post	Nickel
Contact Finish Thickness - Post	1.27 µm
Contact Finish Thickness - Post	50 µin
Contact Length - Mating	0.125 in
Contact Length - Mating	3.18 mm
Contact Length - Post [x]	3.18 mm
Contact Length - Post [x]	0.125 in
Contact Shape	Circular
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.335 "
Insulation Height	8.51 mm
Insulation Material	Polyester, Glass Filled
Mounting Type	Through Hole
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Overall Contact Length	14.86 mm
Overall Contact Length	0.585 in
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Unshrouded
Termination	Solder

BBD-102 Series

Part	Insulation Height [z]	Insulation Height [z]	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Contact Length - Post [x]	Contact Length - Post [x]	Number of Positions Loaded	Connector Type	Termination	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish - Post	Shrouding	Pitch - Mating	Pitch - Mating	Contact Type	Insulation Color	Overall Contact Length	Overall Contact Length	Contact Length - Mating	Contact Length - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Rows	Insulation Material	Fastening Type	Contact Shape	Insulation Height	Insulation Height	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Overall Contact Length
Samtec Inc. BBD-102-T-A	5.35 mm	0.211 in	4	-55 °C	125 °C	Through Hole	3.18 mm	0.125 in	All	Header	Solder	2.54 mm	0.1 in	Nickel	Unshrouded	0.1 in	2.54 mm	Male Pin	Black	11.68 mm	0.46 "	0.125 in	3.18 mm	1.27 µm	50 µin	2	Polyester Glass Filled	Push-Pull	Circular
Samtec Inc. BBD-102-G-D			4	-55 °C	125 °C	Through Hole	3.18 mm	0.125 in	All	Header	Solder	2.54 mm	0.1 in	Nickel	Unshrouded	0.1 in	2.54 mm	Male Pin	Black			0.125 in	3.18 mm	1.27 µm	50 µin	2	Polyester Glass Filled	Push-Pull	Circular	0.835 "	21.21 mm	0.51 µm	20 µin	Gold
Samtec Inc. BBD-102-T-B			4	-55 °C	125 °C	Through Hole	3.18 mm	0.125 in	All	Header	Solder	2.54 mm	0.1 in	Nickel	Unshrouded	0.1 in	2.54 mm	Male Pin	Black	0.585 in		0.125 in	3.18 mm	1.27 µm	50 µin	2	Polyester Glass Filled	Push-Pull	Circular	0.335 "	8.51 mm				14.86 mm
Samtec Inc. BBD-102-G-G			4	-55 °C	125 °C	Through Hole	3.18 mm	0.125 in	All	Header	Solder	2.54 mm	0.1 in	Nickel	Unshrouded	0.1 in	2.54 mm	Male Pin	Black	21.21 mm	0.835 in	0.125 in	3.18 mm	1.27 µm	50 µin	2	Polyester Glass Filled	Push-Pull	Circular	0.585 in	14.86 mm	0.51 µm	20 µin	Gold
Samtec Inc. BBD-102-G-C			4	-55 °C	125 °C	Through Hole	3.18 mm	0.125 in	All	Header	Solder	2.54 mm	0.1 in	Nickel	Unshrouded	0.1 in	2.54 mm	Male Pin	Black	21.21 mm	0.835 in	0.125 in	3.18 mm	1.27 µm	50 µin	2	Polyester Glass Filled	Push-Pull	Circular	0.585 in	14.86 mm	0.51 µm	20 µin	Gold

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.66

Description

General part information

BBD-102 Series

Connector Header Through Hole 4 position 0.100" (2.54mm)
