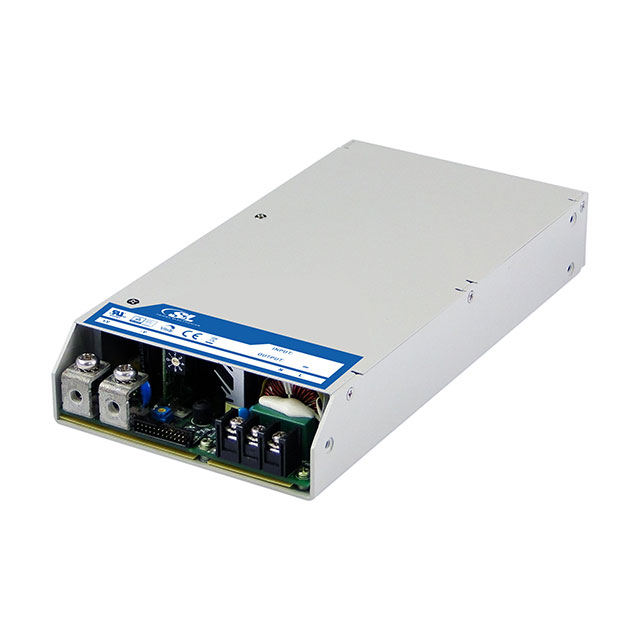

TF800A12K

Active

SL POWER / Advanced Energy

AC/DC POWER SUPPLY SINGLE-OUT 12V 66.7A 800W 12-PIN

Search across all available documentation for this part.

Active

SL POWER / Advanced Energy

AC/DC POWER SUPPLY SINGLE-OUT 12V 66.7A 800W 12-PIN

Technical Specifications

Parameters and characteristics for this part

Specification	TF800A12K

Applications	ITE (Commercial)
Approval Agency	cURus, CE, TUV
Current - Output 1	66.7 A
Efficiency	89 %
Features	Remote On/Off, PFC, Load Sharing, DC Input Capable, Remote Sense, Standby Output, Adjustable Output, I2C Interface
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-25 °C
Power (Watts)	800 W
Size / Dimension [x]	248.9 mm
Size / Dimension [x]	9.8 "
Size / Dimension [y]	127 mm
Size / Dimension [y]	5 "
Size / Dimension [z]	40.6 mm
Size / Dimension [z]	1.6 "
Type	Enclosed
Voltage - Input [Max]	240 VAC, 370 VDC
Voltage - Input [Min]	100 VAC, 127 VDC
Voltage - Isolation	3000 V
Voltage - Output 1	12 V

Part	Number of Outputs	Mounting Type	Features	Current - Output 1	Voltage - Input [Max]	Voltage - Input [Min]	Type	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Efficiency	Applications	Voltage - Output 1	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Isolation	Approval Agency	Power (Watts)
SL POWER / Advanced Energy TF800A12K	1	Chassis Mount	Adjustable Output DC Input Capable I2C Interface Load Sharing PFC Remote On/Off Remote Sense Standby Output	66.7 A	240 VAC 370 VDC	100 VAC 127 VDC	Enclosed	248.9 mm	40.6 mm	127 mm	9.8 "	5 "	1.6 "	89 %	ITE (Commercial)	12 V	60 °C	-25 °C	3000 V	CE cURus TUV	800 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Enclosed AC DC Converters 1 Output 12V 100 ~ 240 VAC, 127 ~ 370 VDC Input
