IPT0050A33R

Active

HONEYWELL / SENSOTEC

SENSOR 50PSIA 0.26" 24BIT

Search across all available documentation for this part.

Active

HONEYWELL / SENSOTEC

SENSOR 50PSIA 0.26" 24BIT

Technical Specifications

Parameters and characteristics for this part

Part	Output Type	Operating Pressure	Operating Pressure	Port Style	Package / Case	Voltage - Supply [Min]	Voltage - Supply [Max]	Maximum Pressure [Max]	Maximum Pressure [Max]	Output	Operating Temperature [Max]	Operating Temperature [Min]	Features	Port Size	Port Size	Port Size	Termination Style	Applications	Accuracy
HONEYWELL / SENSOTEC IPT0050A33R	SPI	50 PSI	344.74 kPa	Barbless	Module	4 V	12 V	1034.21 kPa	150 PSI	24 b	85 °C	-40 °C	Temperature Compensated	Male Tube	6.71 mm	0.26 in	Connector	Board Mount	0.04 %

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

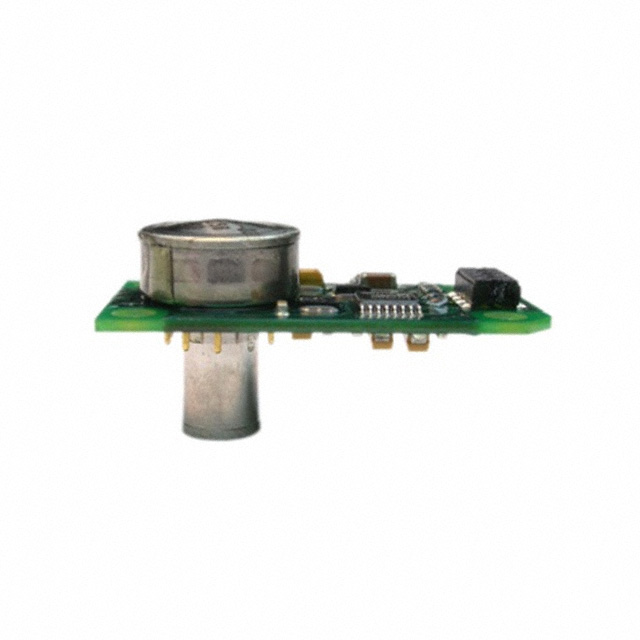

Pressure Sensor 50PSI (344.74kPa) Absolute Male - 0.26" (6.71mm) Tube 24 b Module

Technical documentation and resources
