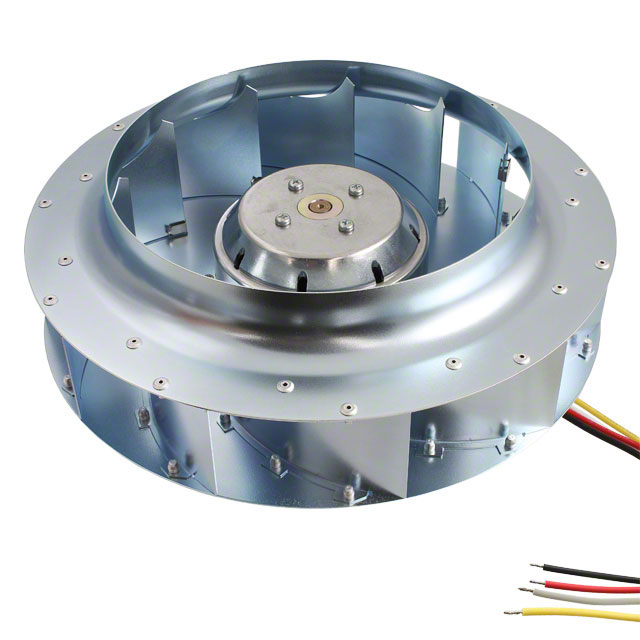

F250A6-072-D0420

Active

NMB TECHNOLOGIES

FAN IMP MTRZD 250X99.8MM 24VDC

Search across all available documentation for this part.

Active

NMB TECHNOLOGIES

FAN IMP MTRZD 250X99.8MM 24VDC

Technical Specifications

Parameters and characteristics for this part

Specification	F250A6-072-D0420

Bearing Type	Ball
Current Rating (Amps)	3.5 A
Fan Type	Motorized Impellers
Features	Speed Sensor (Tach), PWM Control
Material - Blade	Steel
Noise	73 dB(A)
Operating Temperature [Max] [custom]	70 °C
Operating Temperature [Max] [custom]	158 °F
Operating Temperature [Min] [custom]	-30 °C
Operating Temperature [Min] [custom]	-22 °F
Power (Watts)	84 W
RPM	2400 RPM
Size / Dimension [diameter]	250 mm
Static Pressure	459.6 Pa
Static Pressure	1.845 in H2O
Termination	4 Wire Leads
Voltage - Rated	24 VDC
Voltage Range [Max]	30 V
Voltage Range [Min]	18 VDC
Weight	5.2 lbs
Weight	2.4 kg
Width [y]	99.8 mm

Part	Voltage Range [Min]	Voltage Range [Max]	Size / Dimension [diameter]	Current Rating (Amps)	RPM	Fan Type	Noise	Power (Watts)	Features	Static Pressure	Static Pressure	Bearing Type	Weight	Weight	Termination	Width [y]	Operating Temperature [Min] [custom]	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Operating Temperature [Max] [custom]	Voltage - Rated	Material - Blade
NMB TECHNOLOGIES F250A6-072-D0420	18 VDC	30 V	250 mm	3.5 A	2400 RPM	Motorized Impellers	73 dB(A)	84 W	PWM Control Speed Sensor (Tach)	459.6 Pa	1.845 in H2O	Ball	5.2 lbs	2.4 kg	4 Wire Leads	99.8 mm	-30 °C	-22 °F	70 °C	158 °F	24 VDC	Steel

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 268.28
Newark	Each	1	$ 385.16
		100	$ 357.04

General part information

Fan Motorized Impellers 24VDC Round - 250mm Dia Ball 668.0 CFM (18.70m³/min) 4 Wire Leads
