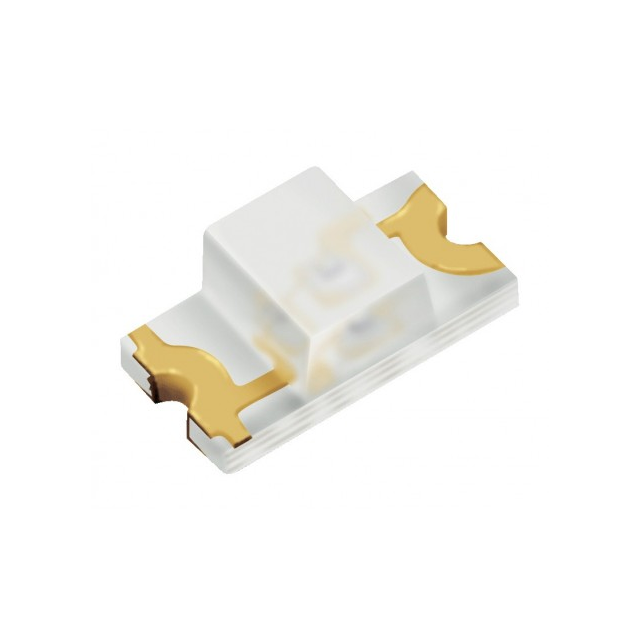

EASR3216RA1
ActiveEverlight Electronics Co Ltd
LED RED CLEAR 2SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EASR3216RA1
ActiveEverlight Electronics Co Ltd
LED RED CLEAR 2SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | EASR3216RA1 |
|---|---|
| Color | Red |
| Configuration | Standard |
| Current - Test | 20 mA |
| Height (Max) [Max] [z] | 1.1 mm |
| Lens Color | Colorless |
| Lens Size [x] | 1.4 mm |
| Lens Size [y] | 1.6 mm |
| Lens Style | Rectangle with Flat Top |
| Lens Transparency | Clear |
| Millicandela Rating | 63 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 1206 (3216 Metric) |
| Size / Dimension [x] | 3.2 mm |
| Size / Dimension [y] | 1.6 mm |
| Supplier Device Package | 2-SMD |
| Viewing Angle | 130 ° |
| Voltage - Forward (Vf) (Typ) | 2.05 V |
| Wavelength - Dominant | 638 nm |
| Wavelength - Peak | 650 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.38 | |
| 10 | $ 0.30 | |||
| 100 | $ 0.13 | |||
| 500 | $ 0.12 | |||
| 1000 | $ 0.10 | |||
| Digi-Reel® | 1 | $ 0.38 | ||
| 10 | $ 0.30 | |||
| 100 | $ 0.13 | |||
| 500 | $ 0.12 | |||
| 1000 | $ 0.10 | |||
| Tape & Reel (TR) | 2000 | $ 0.06 | ||
Description
General part information
EASR3216 Series
Red 638nm LED Indication - Discrete 2.05V 1206 (3216 Metric)
