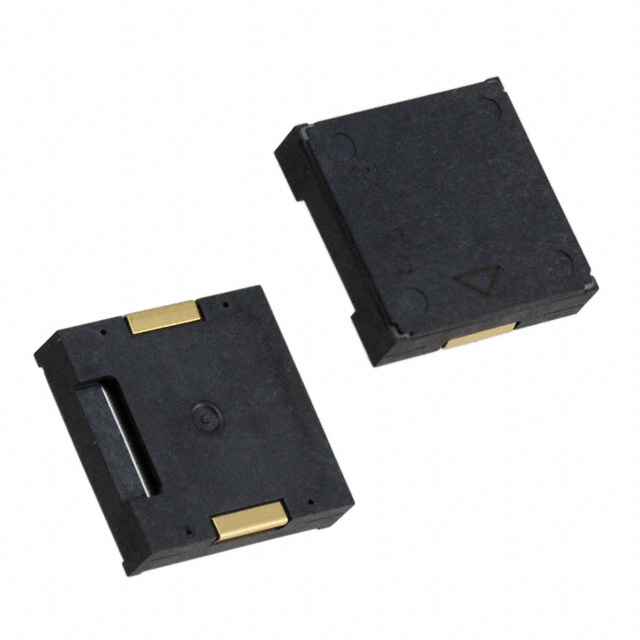

PKLCS1212E24A0-R1
ActiveMurata Power Solutions Inc.
BUZZER PIEZO 1.5V 12X12MM SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PKLCS1212E24A0-R1
ActiveMurata Power Solutions Inc.
BUZZER PIEZO 1.5V 12X12MM SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PKLCS1212E24A0-R1 |
|---|---|
| Driver Circuitry | Externally Driven, Transducer |
| Frequency | 2.4 kHz |
| Height - Seated (Max) [Max] [z] | 3.2 mm |
| Height - Seated (Max) [Max] [z] | 0.126 in |
| Input Type | Zero-Peak Signal |
| Mounting Type | Surface Mount |
| Operating Mode | Single Tone |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Port Location | Side |
| Size / Dimension [x] | 0.472 in |
| Size / Dimension [x] | 12 mm |
| Size / Dimension [y] | 0.472 " |
| Size / Dimension [y] | 12 mm |
| Sound Pressure Level (SPL) | 75 dB |
| Technology | Piezo |
| Termination | Solder Pads |
| Voltage - Rated | 1.5 VDC |
| Voltage Range [Max] | 12.5 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.72 | |
| 10 | $ 1.54 | |||
| 25 | $ 1.45 | |||
| 100 | $ 1.24 | |||
| 250 | $ 1.16 | |||
| 500 | $ 1.02 | |||
| Digi-Reel® | 1 | $ 1.72 | ||
| 10 | $ 1.54 | |||
| 25 | $ 1.45 | |||
| 100 | $ 1.24 | |||
| 250 | $ 1.16 | |||
| 500 | $ 1.02 | |||
| Tape & Reel (TR) | 1000 | $ 0.84 | ||
| 2000 | $ 0.78 | |||
| 5000 | $ 0.76 | |||
| 10000 | $ 0.73 | |||
Description
General part information
PKLCS12 Series
Buzzers Transducer, Externally Driven Piezo 1.5 V 2.4kHz 75dB @ 1.5V, 10cm Surface Mount Solder Pads
