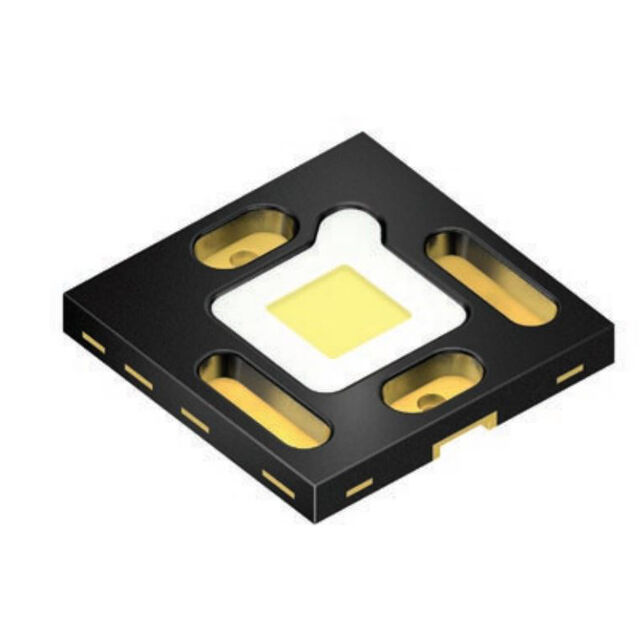

KW HHL532.TK-S2S8-4L07M0-2686-A-R18
Activeams-OSRAM USA INC.
LED OSLON WHITE SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
KW HHL532.TK-S2S8-4L07M0-2686-A-R18
Activeams-OSRAM USA INC.
LED OSLON WHITE SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | KW HHL532.TK-S2S8-4L07M0-2686-A-R18 |
|---|---|
| Color | White |
| Current - Max [Max] | 1.5 A |
| Current - Test | 1 A |
| Flux @ 25°C, Current - Test | 433 lm |
| Height - Seated (Max) [Max] [z] | 0.022 in |
| Height - Seated (Max) [Max] [z] | 0.55 mm |
| Lumens/Watt @ Current - Test | 144 lm/W |
| Mounting Type | Surface Mount |
| Package / Case | 3838 Metric |
| Package / Case | 1515 |
| Size / Dimension [x] | 0.148 " |
| Size / Dimension [x] | 3.75 mm |
| Size / Dimension [y] | 3.75 mm |
| Size / Dimension [y] | 0.148 in |
| Supplier Device Package | SMD |
| Thermal Resistance of Package | 3.2 °C/W |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.49 | |
| 10 | $ 0.93 | |||
| 100 | $ 0.65 | |||
| 500 | $ 0.54 | |||
| 1000 | $ 0.51 | |||
| Digi-Reel® | 1 | $ 1.49 | ||
| 10 | $ 0.93 | |||
| 100 | $ 0.65 | |||
| 500 | $ 0.54 | |||
| 1000 | $ 0.51 | |||
| Tape & Reel (TR) | 2000 | $ 0.48 | ||
| 4000 | $ 0.46 | |||
| 6000 | $ 0.45 | |||
| 10000 | $ 0.43 | |||
| 14000 | $ 0.43 | |||
| 20000 | $ 0.42 | |||
Description
General part information
KWHHL532 Series
LED Lighting OSLON® Black Flat S White 3V 1A 120° 1515 (3838 Metric)
