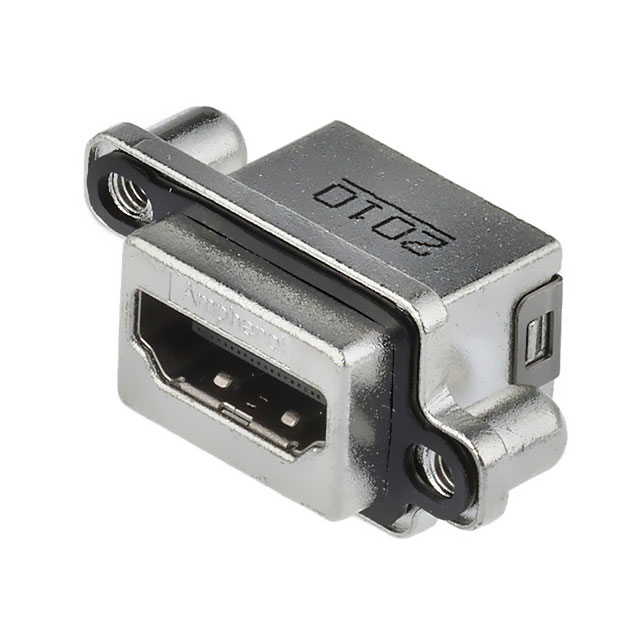

MHDRA111M0
ActiveAmphenol ICC (Commercial Products)
CONN RCPT HDMI 19POS PCB R/A
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MHDRA111M0
ActiveAmphenol ICC (Commercial Products)
CONN RCPT HDMI 19POS PCB R/A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MHDRA111M0 |
|---|---|
| Connector Type | HDMI |
| Contact Finish | Gold |
| Current Rating (Amps) | 0.5 A |
| Features | Board Guide |
| Gender | Receptacle |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Insulation Color | Black |
| Material Flammability Rating | UL94 V-0 |
| Mating Cycles | 10000 |
| Mounting Feature | Flange, Horizontal |
| Mounting Type | Through Hole, Right Angle, Panel Mount |
| Number of Contacts [custom] | 19 |
| Number of Ports | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Shell/Shielding Material | Zinc Alloy, Die Cast |
| Shielding | Shielded |
| Termination | Solder |
| Voltage - Rated | 40 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 15.68 | |
| 10 | $ 13.90 | |||
| 25 | $ 13.37 | |||
| 50 | $ 12.83 | |||
| 100 | $ 12.12 | |||
| 250 | $ 11.05 | |||
| 500 | $ 10.34 | |||
| 1000 | $ 9.48 | |||
Description
General part information
MHDR Series
HDMI Receptacle Connector 19 Position Panel Mount, Through Hole, Right Angle
