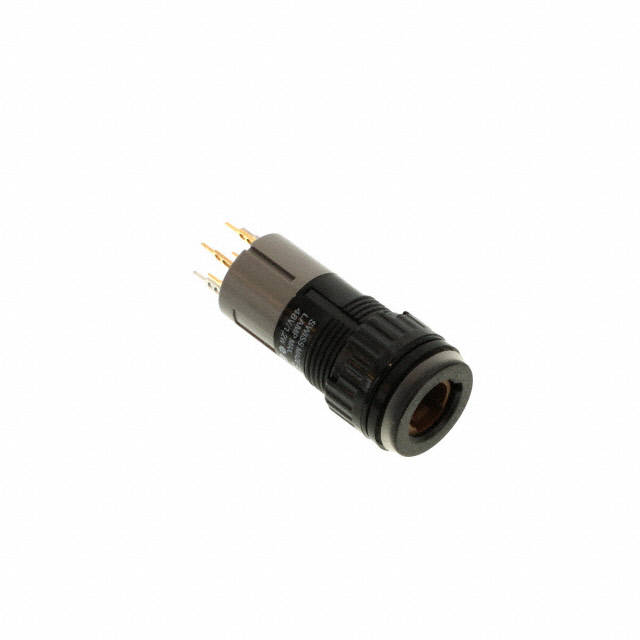

52-473.036
ActiveEAO
SWITCH SELECT 2P DPST 100MA 42V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
52-473.036
ActiveEAO
SWITCH SELECT 2P DPST 100MA 42V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 52-473.036 |
|---|---|
| Circuit | DPST-NO/NC |
| Current Rating (Amps) | 100 mA |
| Illumination | Illuminated |
| Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Mechanical Life | 1000000 Cycles |
| Number of Positions | 2 |
| Operating Temperature [Max] | 55 °C |
| Operating Temperature [Min] | -25 °C |
| Panel Cutout Dimensions [diameter] | 16.2 mm |
| Switch Function | On-Off, Off-On |
| Termination Style | PC Pin, Solder Lug |
| Type | Standard |
| Voltage Rating - AC | 42 V |
| Voltage Rating - DC | 42 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 56.71 | |
| 10 | $ 48.91 | |||
| 25 | $ 46.11 | |||
| 50 | $ 44.09 | |||
| 100 | $ 42.15 | |||
| 250 | $ 39.72 | |||
Description
General part information
52-473 Series
Selector Switch 2 Position DPST-NO/NC 100mA (AC/DC) 42 V Panel Mount
