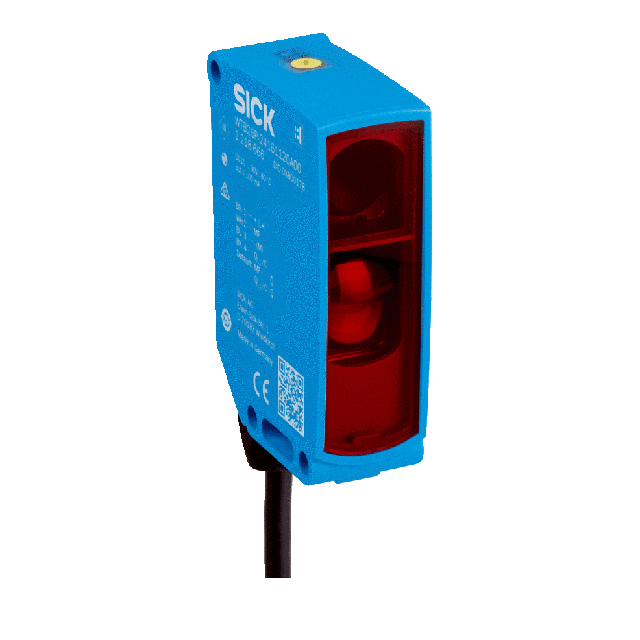

1218667
ActiveSICK, Inc.
SENSOR PROXIMITY 2M NPN/PNP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1218667
ActiveSICK, Inc.
SENSOR PROXIMITY 2M NPN/PNP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1218667 |
|---|---|
| Adjustment Type | Adjustable |
| Connection Method | Connector, M12 |
| Ingress Protection | IP67, IP66 |
| Light Source | Infrared (850nm) |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | NPN/PNP, Push-Pull |
| Response Time | 500 µs |
| Sensing Distance [Max] | 78.74 " |
| Sensing Distance [Max] | 2000 mm |
| Sensing Distance [Min] | 0.39 in |
| Sensing Distance [Min] | 10 mm |
| Sensing Method | Proximity |
| Voltage - Supply [Max] | 30 VDC |
| Voltage - Supply [Min] | 10 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 442.57 | |
| 5 | $ 373.39 | |||
| 10 | $ 347.05 | |||
| 25 | $ 327.85 | |||
Description
General part information
WTB26I Series
Proximity Optical Sensor 0.39" ~ 78.74" (10mm ~ 2m) Push-Pull, NPN/PNP
