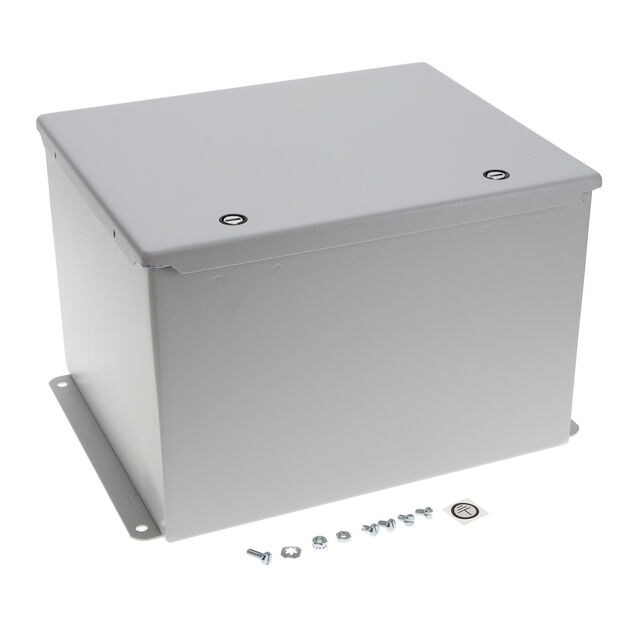

A12108CHFL

Active

Hoffman Enclosures, Inc.

JUNCTION BOX STEEL 12"L X 10"W

Search across all available documentation for this part.

Active

Hoffman Enclosures, Inc.

JUNCTION BOX STEEL 12"L X 10"W

Technical Specifications

Parameters and characteristics for this part

Specification	A12108CHFL

Area (L x W)	120 in²
Area (L x W)	774 cm²
Color	Gray
Container Type	Junction Box
Design	Hinged Door, Lid
Features	Wall Mount, Sealing Gasket, Latches
Material	Metal, Steel
Ratings	NEMA 4, IP66, UL-508A, 12
Size / Dimension [x]	12.008 in
Size / Dimension [x]	305 mm
Size / Dimension [y]	254 mm
Size / Dimension [y]	10 in
Thickness	14 Gauge
Weight	15 lbs
Weight	6.8 kg

Part	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Container Type	Thickness	Color	Design	Material	Area (L x W)	Area (L x W)	Weight	Weight	Features	Ratings
Hoffman Enclosures, Inc. A12108CHFL	254 mm	10 in	12.008 in	305 mm	Junction Box	14 Gauge	Gray	Hinged Door Lid	Metal Steel	120 in²	774 cm²	15 lbs	6.8 kg	Latches Sealing Gasket Wall Mount	12 IP66 NEMA 4 UL-508A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Junction Box Metal, Steel Gray Hinged Door, Lid 12.008" L x 10.000" W (305.00mm x 254.00mm) X 7.992" (203.00mm)
