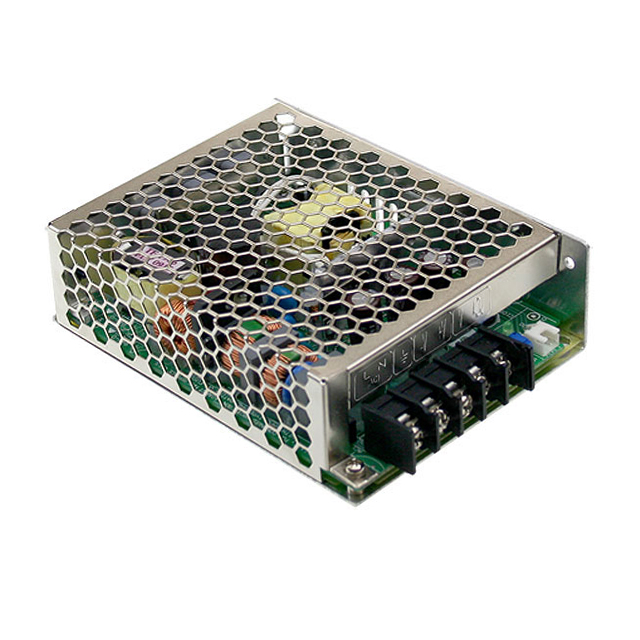

HRP-75-36

Active

MEAN WELL USA Inc.

AC/DC CONVERTER 36V 76W

Search across all available documentation for this part.

Active

MEAN WELL USA Inc.

AC/DC CONVERTER 36V 76W

Technical Specifications

Parameters and characteristics for this part

Specification	HRP-75-36

Applications	ITE (Commercial)
Approval Agency	CB, CE, cURus, TUV
Current - Output 1	2.1 A
Efficiency	89 %
Features	PFC, Remote On/Off, Universal Input, Adjustable Output
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Power (Watts)	76 W
Type	Enclosed
Voltage - Input [Max]	370 VDC, 264 VAC
Voltage - Input [Min]	85 VAC, 120 VDC
Voltage - Isolation	3000 V
Voltage - Output 1	36 V

Part	Voltage - Isolation	Efficiency	Voltage - Input [Min]	Voltage - Input [Max]	Minimum Load Required	Type	Mounting Type	Current - Output 1	Power (Watts)	Voltage - Output 1	Applications	Approval Agency	Features	Number of Outputs
MEAN WELL USA Inc. HRP-75-36	3000 V	89 %	85 VAC 120 VDC	264 VAC 370 VDC		Enclosed	Chassis Mount	2.1 A	76 W	36 V	ITE (Commercial)	CB CE cURus TUV	Adjustable Output PFC Remote On/Off Universal Input	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	30	$ 37.37

General part information

Enclosed AC DC Converters 1 Output 36V 85 ~ 264 VAC, 120 ~ 370 VDC Input

Technical documentation and resources

No documents available
