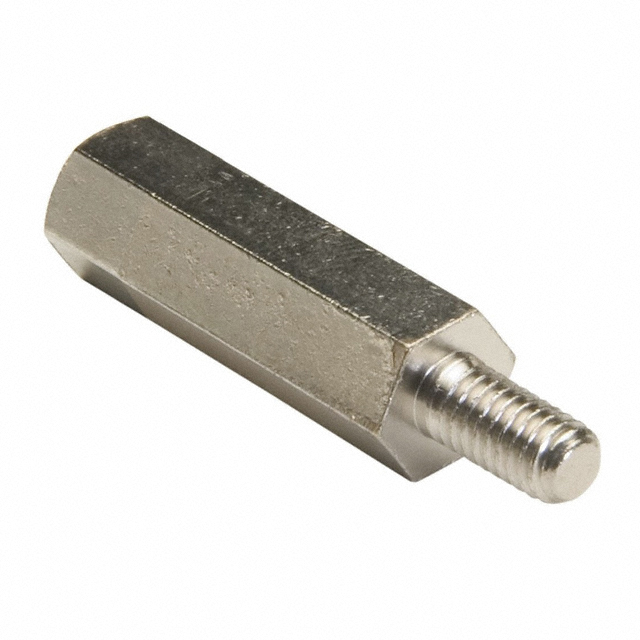

R30-3002202

Active

Harwin Inc.

STANDOFF, HEX M-F, BRASS, M3, 27MM ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Harwin Inc.

STANDOFF, HEX M-F, BRASS, M3, 27MM ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Part	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Gender	Length - Overall [x]	Length - Overall [x]	Between Board Height	Between Board Height	Material	Type	Screw, Thread Size	Plating	Threaded/Unthreaded	Between Board Height [z]	Between Board Height [z]	Length - Overall	Length - Overall
Harwin Inc. R30-3001002	0.197 in	5 mm	Female Male	0.63 "	16 mm	0.394 in	10 mm	Brass	Hex Standoff	M3x0.5	Nickel	Threaded
Harwin Inc. R30-3003502	0.197 in	5 mm	Female Male	1.614 in	41 mm	1.378 in	35 mm	Brass	Hex Standoff	M3x0.5	Nickel	Threaded
Harwin Inc. R30-3001802	0.197 in	5 mm	Female Male	0.945 in	24 mm	0.709 in	18 mm	Brass	Hex Standoff	M3x0.5	Nickel	Threaded
Harwin Inc. R30-3000502	0.197 in	5 mm	Female Male	0.433 in	11 mm	0.197 in	5 mm	Brass	Hex Standoff	M3x0.5	Nickel	Threaded
Harwin Inc. R30-3001602	0.197 in	5 mm	Female Male	0.866 "	22 mm			Brass	Hex Standoff	M3x0.5	Nickel	Threaded	16 mm	0.63 in
Harwin Inc. R30-3004002	0.197 in	5 mm	Female Male	1.811 in	46 mm	1.575 in	40 mm	Brass	Hex Standoff	M3x0.5	Nickel	Threaded
Harwin Inc. R30-3002202	0.197 in	5 mm	Female Male			0.866 in	22 mm	Brass	Hex Standoff	M3x0.5	Nickel	Threaded
Harwin Inc. R30-3006002	0.197 in	5 mm	Female Male			2.362 in	60 mm	Brass	Hex Standoff	M3x0.5	Nickel	Threaded			2.598 in	66 mm
Harwin Inc. R30-3001502	0.197 in	5 mm	Female Male	0.827 in	21 mm	0.591 in	15 mm	Brass	Hex Standoff	M3x0.5	Nickel	Threaded
Harwin Inc. R30-3001702	0.197 in	5 mm	Female Male	0.906 in	23 mm	0.669 in	17 mm	Brass	Hex Standoff	M3x0.5	Nickel	Threaded

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Hex Standoff Threaded M3x0.5 Brass 0.866" (22.00mm)
