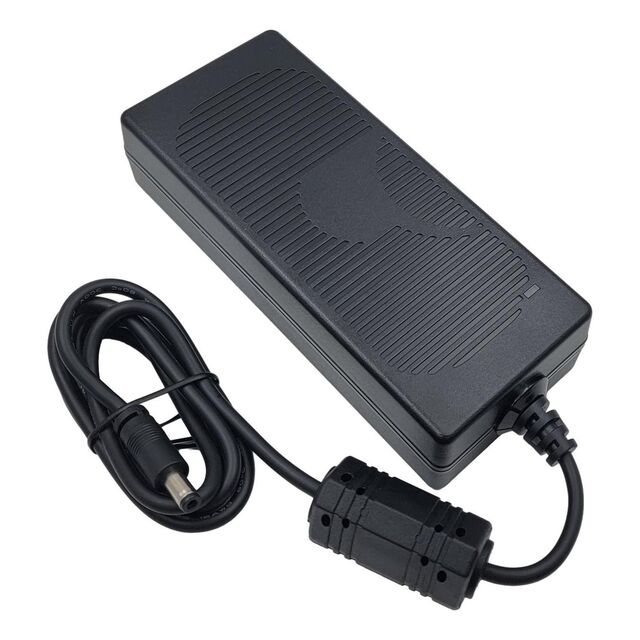

TR9CG6000LCP-IM(R6B)
ActiveGlobTek, Inc.
AC/DC DESKTOP ADAPTER 15V 90W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TR9CG6000LCP-IM(R6B) |
|---|---|
| Applications | Household Appliances, ITE (Commercial), Medical |
| Approval Agency | cETLus, ETL, CB, UKRSepro, VCCI, LPS, CCC, S-Mark, RCM, EAC, PSE, CE |
| Cord Length | 1.2 m |
| Cord Length | 47.2 in |
| Current - Output (Max) [Max] | 6 A |
| Efficiency | Level VI, CoC Tier 1 |
| Form | Desktop (Class I) |
| Input Connector | IEC 320-C14 |
| Input Type | Cord |
| No Load Power Consumption [Max] | 150 mW |
| Operating Temperature [Max] | 40 °C |
| Operating Temperature [Min] | -10 °C |
| Output Connector | Barrel Plug |
| Output Connector [diameter] | 5.5 mm, 2.5 mm |
| Output Connector [x] | 11 mm |
| Polarization | Positive Center |
| Power (Watts) | 90 W |
| Region Utilized | International |
| Size / Dimension [x] | 5.88 in |
| Size / Dimension [x] | 149.4 mm |
| Size / Dimension [y] | 2.47 in |
| Size / Dimension [y] | 62.8 mm |
| Size / Dimension [z] | 34 mm |
| Size / Dimension [z] | 1.34 in |
| Standard Number | 60601-1, 60335-1, 60950-1, 62368-1 |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Output | 15 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 42.47 | |
| 5 | $ 41.80 | |||
| 20 | $ 39.81 | |||
| 40 | $ 37.16 | |||
| 60 | $ 36.50 | |||
| 100 | $ 35.30 | |||
Description
General part information
TR9CG6000 Series
15V 90 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input
