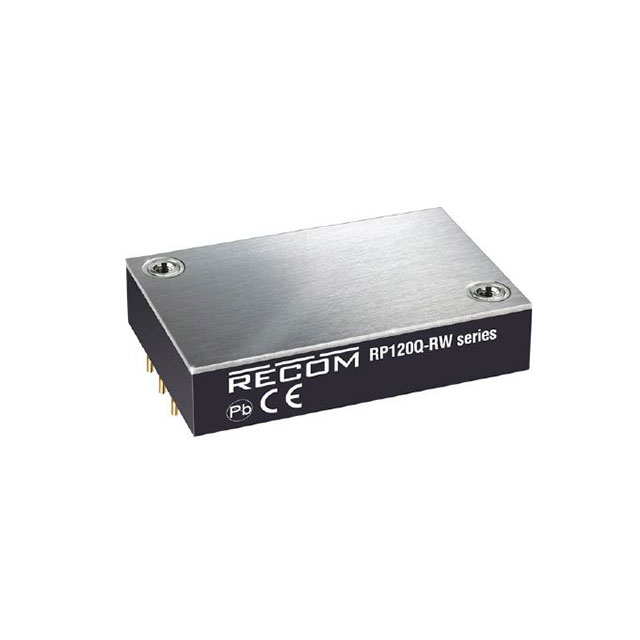

RP120Q-2424SRW/P

Active

RECOM Power

ISOLATED DC/DC CONVERTERS - THROUGH HOLE 120W 9-36VIN 24VOUT 5A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Datasheet

RP120Q-2424SRW/P

Active

RECOM Power

ISOLATED DC/DC CONVERTERS - THROUGH HOLE 120W 9-36VIN 24VOUT 5A

Deep-Dive with AI

DocumentsDatasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RP120Q-2424SRW/P

Applications	Railway, ITE (Commercial)
Current - Output (Max) [Max]	5 A
Efficiency	88 %
Features	OVP, UVLO, SCP, OCP, OTP
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Package / Case	Quarter Brick
Power (Watts)	120 W
Size / Dimension [x]	57.9 mm
Size / Dimension [x]	2.28 in
Size / Dimension [y]	1.45 in
Size / Dimension [y]	36.8 mm
Size / Dimension [z]	12.7 mm
Size / Dimension [z]	0.5 in
Supplier Device Package	Quarter Brick
Type	Isolated Module
Voltage - Input (Max) [Max]	36 V
Voltage - Input (Min) [Min]	9 V
Voltage - Isolation	2250 VDC
Voltage - Output 1	24 V

RP120Q-11005 Series

Isolated DC/DC Converters - Through Hole 120W 16.5-75Vin 12Vout 10A

Part	Features	Type	Current - Output (Max) [Max]	Voltage - Output 1	Voltage - Isolation	Supplier Device Package	Package / Case	Applications	Efficiency	Power (Watts)	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]	Number of Outputs	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]
RECOM Power RP120Q-2412SRW/N-HC	OCP OTP OVP SCP UVLO	Isolated Module	10 A	12 V	2250 VDC	Quarter Brick	Quarter Brick	ITE (Commercial) Railway	88 %	120 W	9 V	36 V	1	2.28 in	1.45 in	57.9 mm	0.74 in	36.8 mm	18.8 mm	Through Hole	-40 °C	100 °C
RECOM Power RP120Q-11024SRW/P	OCP OTP OVP SCP UVLO	Isolated Module	5.5 A	24 V	3000 V	Quarter Brick	Quarter Brick	ITE (Commercial) Railway	89 %	132 W	40 V	160 V	1	2.28 in	1.45 in	57.9 mm	0.5 in	36.8 mm	12.7 mm	Through Hole	-40 °C	100 °C
RECOM Power RP120Q-4805SRW/P-HC	OCP OTP OVP SCP UVLO	Isolated Module	24 A	5 V	2250 VDC	Quarter Brick	Quarter Brick	ITE (Commercial) Railway	89 %	120 W	16.5 V	75 V	1	2.28 in	1.45 in	57.9 mm	0.74 in	36.8 mm	18.8 mm	Through Hole	-40 °C	100 °C
RECOM Power RP120Q-4805SRW/P	OCP OTP OVP SCP UVLO	Isolated Module	24 A	5 V	2250 VDC	Quarter Brick	Quarter Brick	ITE (Commercial) Railway	89 %	120 W	16.5 V	75 V	1	2.28 in	1.45 in	57.9 mm	0.5 in	36.8 mm	12.7 mm	Through Hole	-40 °C	100 °C
RECOM Power RP120Q-11024SRW/N	OCP OTP OVP SCP UVLO	Isolated Module	5.5 A	24 V	3000 V	Quarter Brick	Quarter Brick	ITE (Commercial) Railway	89 %	132 W	40 V	160 V	1	2.28 in	1.45 in	57.9 mm	0.5 in	36.8 mm	12.7 mm	Through Hole	-40 °C	100 °C
RECOM Power RP120Q-2415SRW/P	OCP OTP OVP SCP UVLO	Isolated Module	8 A	15 V	2250 VDC	Quarter Brick	Quarter Brick	ITE (Commercial) Railway	89 %	120 W	9 V	36 V	1	2.28 in	1.45 in	57.9 mm	0.5 in	36.8 mm	12.7 mm	Through Hole	-40 °C	100 °C
RECOM Power RP120Q-2424SRW/P	OCP OTP OVP SCP UVLO	Isolated Module	5 A	24 V	2250 VDC	Quarter Brick	Quarter Brick	ITE (Commercial) Railway	88 %	120 W	9 V	36 V	1	2.28 in	1.45 in	57.9 mm	0.5 in	36.8 mm	12.7 mm	Through Hole	-40 °C	100 °C
RECOM Power RP120Q-4848SRW/N	OCP OTP OVP SCP UVLO	Isolated Module	2.5 A	48 V	2250 VDC	Quarter Brick	Quarter Brick	ITE (Commercial) Railway	90 %	120 W	16.5 V	75 V	1	2.28 in	1.45 in	57.9 mm	0.5 in	36.8 mm	12.7 mm	Through Hole	-40 °C	100 °C
RECOM Power RP120Q-11012SRW/P-HC	OCP OTP OVP SCP UVLO	Isolated Module	11 A	12 V	3000 V	Quarter Brick	Quarter Brick	ITE (Commercial) Railway	88 %	132 W	40 V	160 V	1	2.28 in	1.45 in	57.9 mm	0.74 in	36.8 mm	18.8 mm	Through Hole	-40 °C	100 °C
RECOM Power RP120Q-4815SRW/P-HC	OCP OTP OVP SCP UVLO	Isolated Module	8 A	15 V	2250 VDC	Quarter Brick	Quarter Brick	ITE (Commercial) Railway	90 %	120 W	16.5 V	75 V	1	2.28 in	1.45 in	57.9 mm	0.74 in	36.8 mm	18.8 mm	Through Hole	-40 °C	100 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	2	$ 210.35
Sager	N/A	1	$ 210.35
		5	$ 197.19
		10	$ 188.35
		25	$ 180.29
		50	$ 172.89
		100	$ 161.79
		250	$ 153.89

Description

General part information

RP120Q-11005 Series

Isolated DC/DC Converters - Through Hole 120W 16.5-75Vin 12Vout 10A

Documents

Technical documentation and resources

Datasheet

Document
