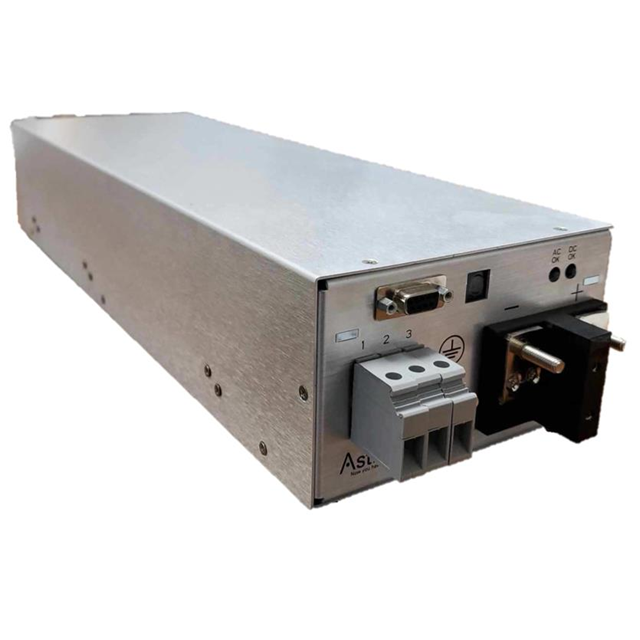

T100116107-LF
ActiveAstrodyne TDI
AC/DC CONVERTER RECTIFIER 5.5KW
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
T100116107-LF
ActiveAstrodyne TDI
AC/DC CONVERTER RECTIFIER 5.5KW
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | T100116107-LF |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output 1 | 120 A |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 50 °C |
| Operating Temperature [Min] | 5 °C |
| Power (Watts) | 5500 W |
| Size / Dimension [x] | 499.6 mm |
| Size / Dimension [x] | 19.67 " |
| Size / Dimension [y] | 149.1 mm |
| Size / Dimension [y] | 5.87 in |
| Size / Dimension [z] | 87.9 mm |
| Size / Dimension [z] | 3.46 " |
| Type | Enclosed |
| Voltage - Input [Max] | 480 VAC |
| Voltage - Input [Min] | 380 VAC |
| Voltage - Isolation | 6000 V |
| Voltage - Output 1 [Max] | 60 V |
| Voltage - Output 1 [Min] | 0 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 2440.00 | |
| 10 | $ 2219.13 | |||
| 25 | $ 2093.52 | |||
Description
General part information
T100116107 Series
Enclosed AC DC Converters 1 Output 0 ~ 60V 380 ~ 480 VAC (3 Phase) Input
