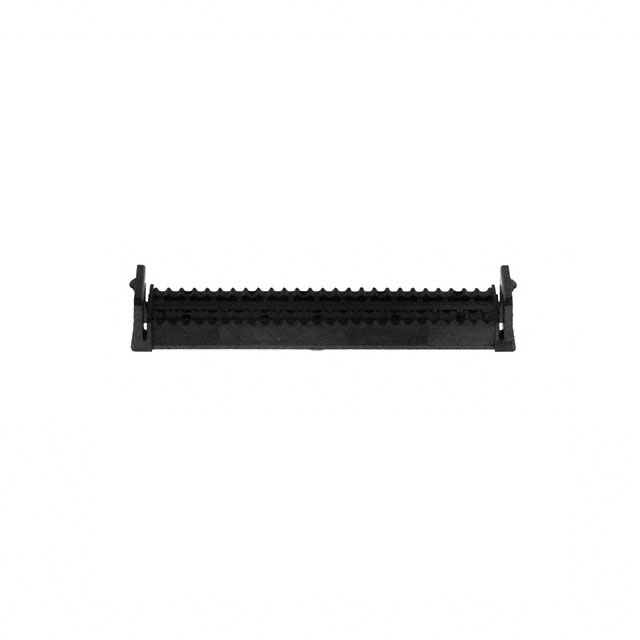

XG4E-2631-S003

Active

Omron Electronics Inc-EMC Div

REPL COVER ONLY 26POS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

XG4E-2631-S003

Active

Omron Electronics Inc-EMC Div

REPL COVER ONLY 26POS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	XG4E-2631-S003

Accessory Type	Cap (Cover)
Features	Feed Through
For Use With/Related Products	XG4 Series
Number of Positions	26

XG4E Series

Part	For Use With/Related Products	Accessory Type	Features	Number of Positions	Color	Contact Finish	Contact Type	Contact Finish Thickness	Contact Finish Thickness	Fastening Type	Mounting Type	Number of Rows	Pitch [x]	Pitch [x]	Wire Type	Connector Type	Cable Termination	Row Spacing [x]	Row Spacing	Wire Gauge
Omron Electronics Inc-EMC Div XG4E-6031-S011	XG4 Series	Cap (Cover)	Feed Through	60
Omron Electronics Inc-EMC Div XG4E-5071			Feed Through	50	Black	Gold	Male Pin	5.9 µin	0.15 µm	Latch Lock/Eject Hooks Long	Free Hanging (In-Line)	2	2.54 mm	0.1 in	Ribbon Cable	Plug	IDC	0.1 in	2.54 mm
Omron Electronics Inc-EMC Div XG4E-1031			Feed Through	10	Black	Gold	Male Pin	5.9 µin	0.15 µm	Latch Lock/Eject Hooks Long	Free Hanging (In-Line)	2	2.54 mm	0.1 in	Ribbon Cable	Plug	IDC	0.1 in	2.54 mm	28 AWG
Omron Electronics Inc-EMC Div XG4E-6432			Feed Through	64	Black	Gold	Male Pin	5.9 µin	0.15 µm	Latch Lock/Eject Hooks Short	Free Hanging (In-Line)	2	2.54 mm	0.1 in	Ribbon Cable	Plug	IDC	0.1 in	2.54 mm
Omron Electronics Inc-EMC Div XG4E-6031			Feed Through	60	Black	Gold	Male Pin	5.9 µin	0.15 µm	Latch Lock/Eject Hooks Long	Free Hanging (In-Line)	2	2.54 mm	0.1 in	Ribbon Cable	Plug	IDC	0.1 in	2.54 mm	28 AWG
Omron Electronics Inc-EMC Div XG4E-2631-S003	XG4 Series	Cap (Cover)	Feed Through	26
Omron Electronics Inc-EMC Div XG4E-2031-S005	XG4 Series	Cap (Cover)	Feed Through	20
Omron Electronics Inc-EMC Div XG4E-4031-S009	XG4 Series	Cap (Cover)	Feed Through	40
Omron Electronics Inc-EMC Div XG4E-2632			Feed Through	26	Black	Gold	Male Pin	5.9 µin	0.15 µm	Latch Lock/Eject Hooks Short	Free Hanging (In-Line)	2	2.54 mm	0.1 in	Ribbon Cable	Plug	IDC	0.1 in	2.54 mm
Omron Electronics Inc-EMC Div XG4E-5072			Feed Through	50	Black	Gold	Male Pin	5.9 µin	0.15 µm	Latch Lock/Eject Hooks Short	Free Hanging (In-Line)	2	2.54 mm	0.1 in	Ribbon Cable	Plug	IDC	0.1 in	2.54 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	200	$ 1.43

Description

General part information

XG4E Series

Connector Cap (Cover) For XG4 Series

Documents

Technical documentation and resources
